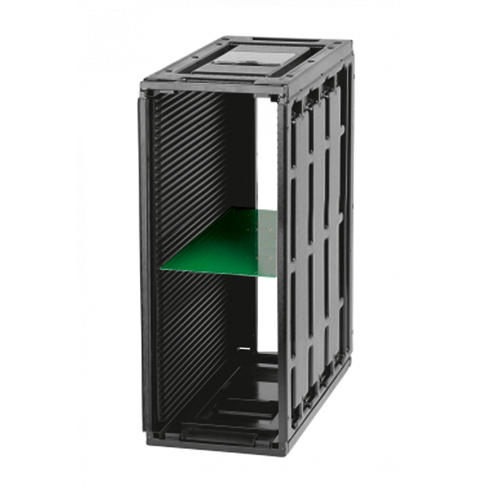

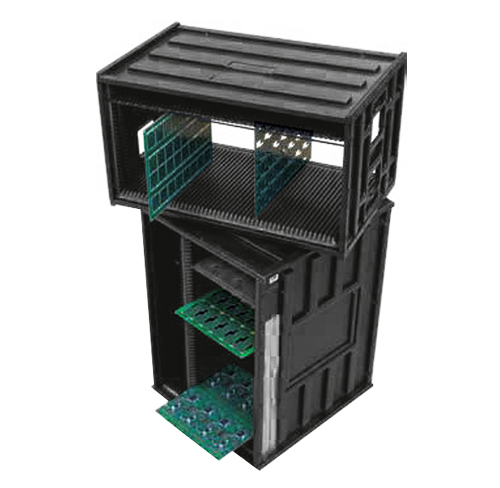

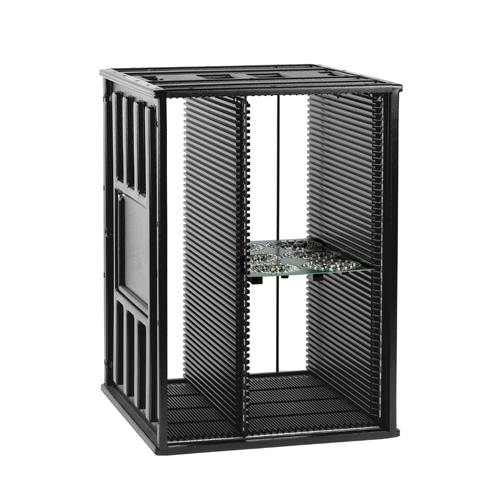

ESD magazines

  • Vertical pitch 10 mm
  •  Width adjustable by 5 mm pitch
  • Strong construction from thermoformed plastic with metal reinforcement
  • Light in weight and extremely rigid
  • Assembled using rivets and ultrasonic welding
  • Each groove is numbered
  • Each magazine is delivered with a partition

2 versions available:
  • PS for a 60°C heat resistance
  • ABS/PC for 110°C heat resistance

PS magazines

Extra partitions and lids available on request

Code Dimensions Material PCB Codes for adjustable plates
22-150-0943 320x350x560 PS 247 97-001-0003
22-150-1154 370x370x560 297 97-001-0003
22-150-1187 400x425x560 327 97-001-0001
22-150-0817 420x460x560 357 97-001-0001
22-150-0891 450x425x560 377 97-001-0007
22-150-1083 470x480x560 397 97-001-0007


ABS/PC magazines

Extra partitions and lids available on request

Code Dimensions Material PCB Code for adjustable plates
22-151-0943 320x350x560 ABS/PC 247 97-011-0005
22-151-1154 370x370x560 297 97-011-0005
22-151-1187 400x425x560 327 97-001-0001
22-151-0817 420x460x560 357 97-011-0001
22-151-0891 450x425x560 377 97-011-0003
22-151-1083 470x480x560 397 97-011-0003
