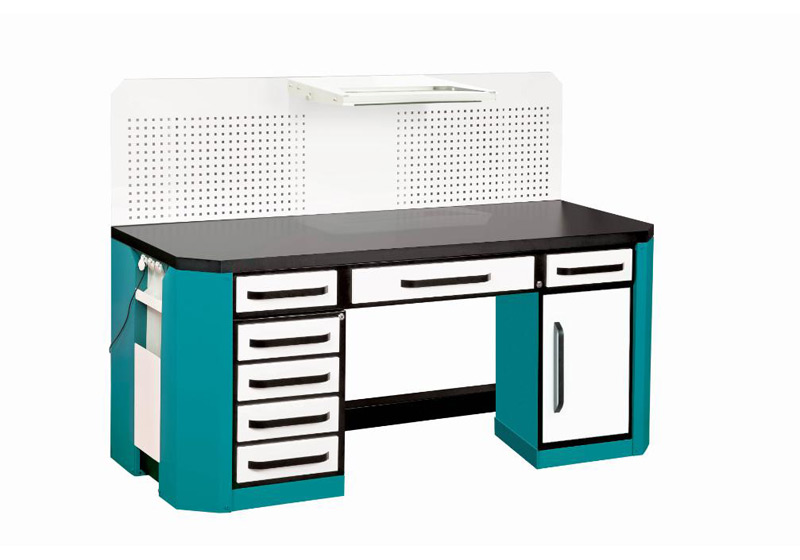

Heavy duty workbench VT series Titan New

Heavy duty workbench VT
Titan heavy duty workbench is a high tech construction without additional service supports under the tabletop, where all the stiffeners organically fit the design of the workbench. Load capacity and rigidity are achieved through optimally calculated 1,5 mm thick structural iron profiles, instead of the usage of several tools cabinets placed under the tabletop.
2 types of tabletops available for the workbench:
  • 30 mm thick plywood coated with 10 mm shockproof plastic
  • 30 mm thick plywood coated with 6 mm sheet metal
Standard sizes of heavy duty workbenches (W*H*D) are 1200/1500/1800*800*700 mm

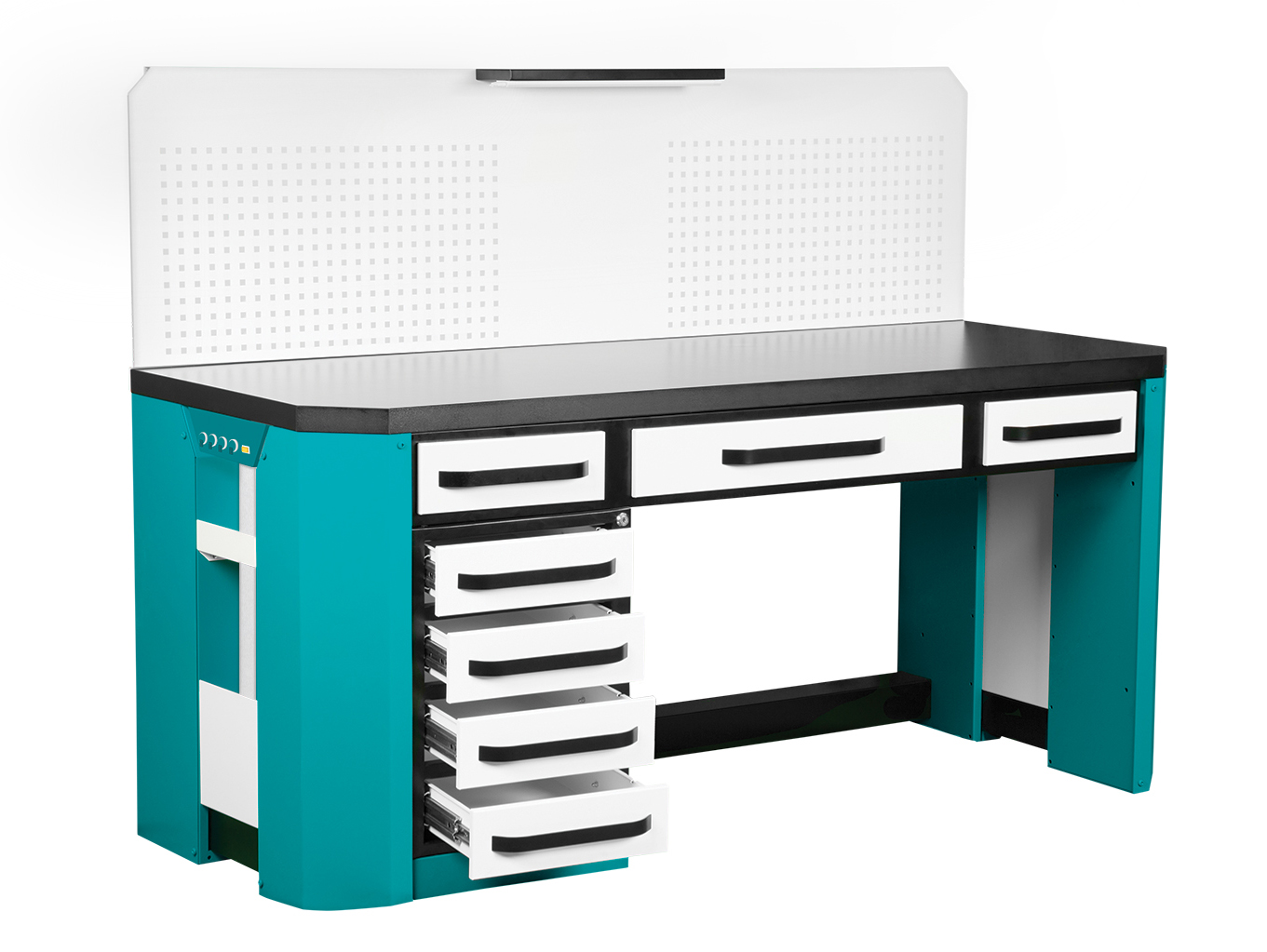

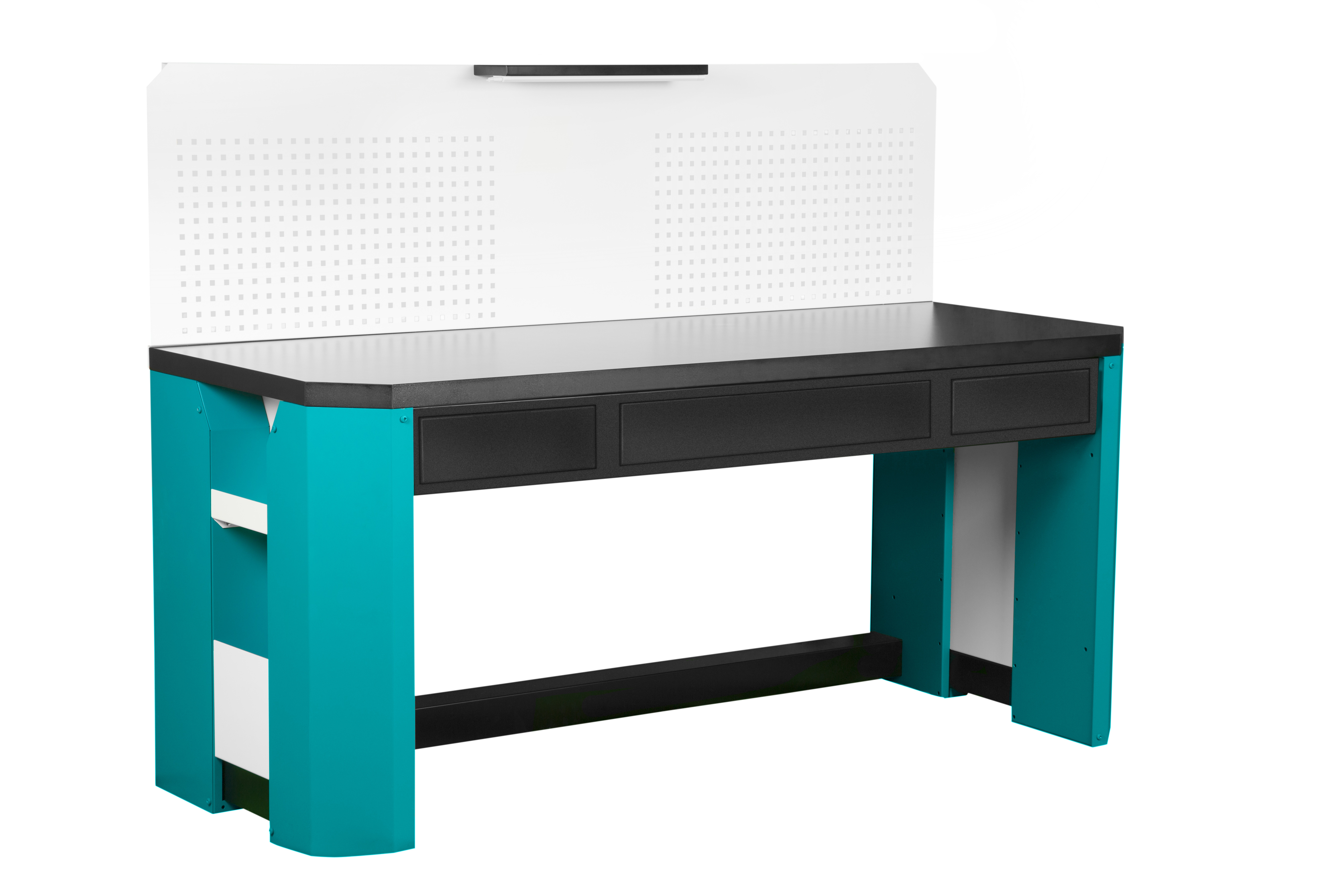

Titan heavy duty workbenches in basic version (VT/B) are supplied with technological plugs in a frame under the tabletop, heavy duty workbenches in expanded version (VT/R) are supplied with reinforced telescopic drawers:
  • 2 small drawers 300*80*450 mm for 1200 wide mm workbenches
  • 3 small drawers 300*80*450 mm for 1500 wide mm workbenches
  • 2 small drawers 300*80*450 mm and 1 big drawer 640*80*450 mm for 1800 wide mm workbenches
Heavy duty workbenches’ weight is 160/180/200 kg depending on it’s size.
All heavy duty workbenches are equipped with small side shelves under the tabletop.
Default colors combination is RAL 5021 (turquoise), RAL 9005 (black) and RAL 9010 (white). Matte paint texture.
  • Distributed tabletop load capacity – 2000 kg
  • Impact load – 300 kg
  • Max load on telescopic drawers – 80 kg

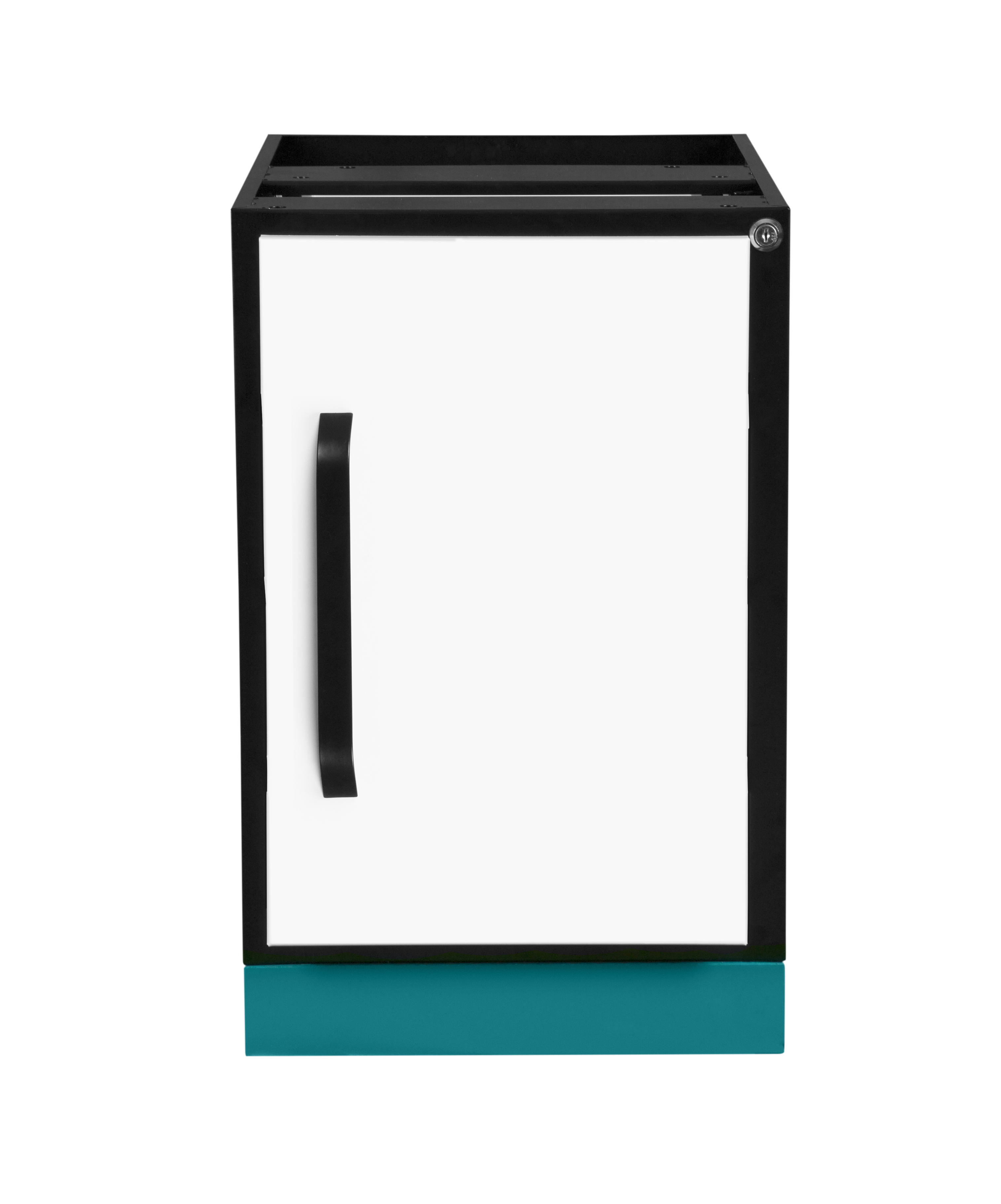

1 Attachable drawer unit with door TMB-01/VT
Drawer unit for tools and accessories storage is placed under the heavy duty workbench frame and is mounted by bolting if necessary.  Drawer unit is equipped with a door and an inner shelf.
  • Dimensions of attachable drawer unit for heavy duty workbenches (W*H*D) 390*610*570 mm
  • Weight of drawer unit with door – 20 kg

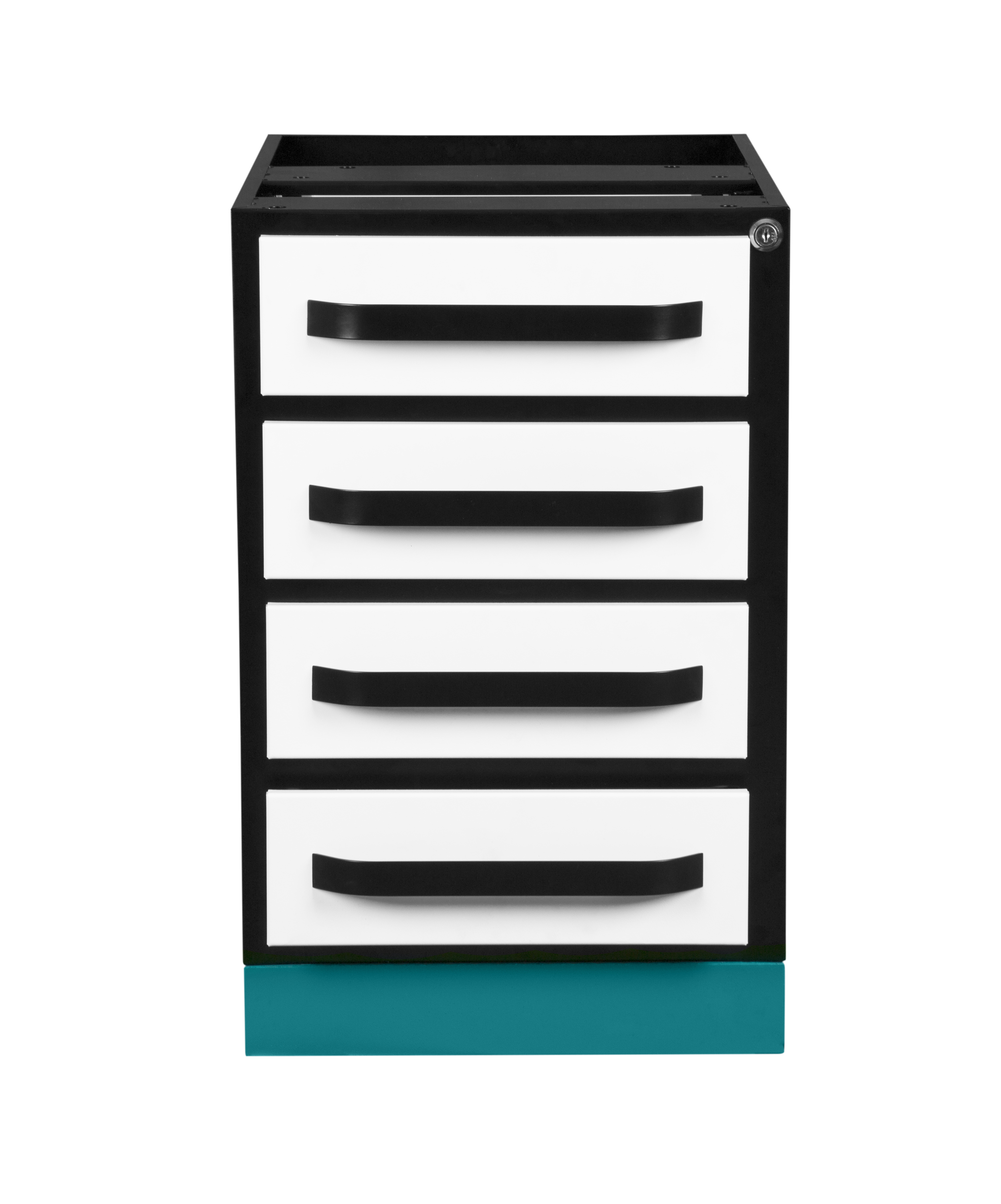

2 Attachable drawer unit with drawers DR-04/VT
Attachable drawer unit for tools and accessories storage is placed under the heavy workbench and is mounted by bolting if necessary.
It is equipped with 4 drawers 300*80*450 mm with reinforced load characteristics.
  • Dimensions of attachable drawer unit for heavy workbenches (W*H*D) 390*610*570 mm
  • Weight of a cabinet with drawers – 30 kg
  • Max load on telescopic drawers – 80 kg
3 Perforated panel PFP/VT
It is designed for fastening additional equipment and tools; it can be equipped K series with tool holders and accessories.
  • Height of screen – 500 mm
  • Load – up to 30 kg
4 Hinged LED lamp DL/VT
Metal case with LED lamp is fastened in the central zone of the perforated panel.
  • Dimensions: 745×255×50 mm
Illumination of the working surface at a distance of 1000 mm from the light source:
  • Central zone at least 1000 lux

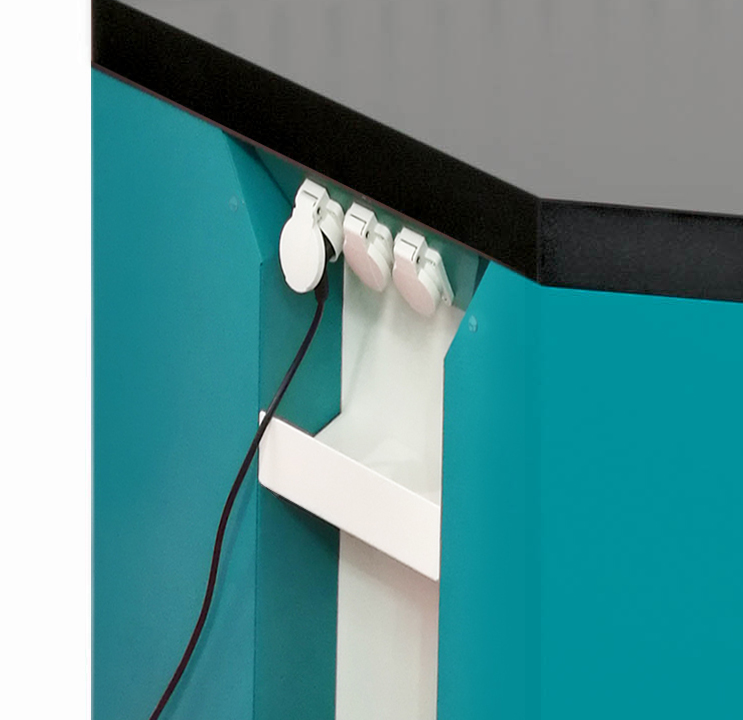

5 Power panel EPA/VT
Trapezoidal power panel is installed under the tabletop of heavy duty workbenches inside the lateral support. Power panel is equipped with 3 European socket outlets, power switch and three-meter cable network, which is output through the support of heavy workbench.
  • Nominal load: 10 A
  • Cross-section of grounding cable: 1,5 mm


For selection desired workbench model, choose the standard size:
  • 1200*700 mm
  • 1500*700 mm
  • 1800*700 mm
Version:
  • basic version (VT/B) are supplied with technological plugs in a frame under the tabletop;
  • expanded version (VT/R) are supplied with reinforced telescopic drawers
Type of tabletop:
  • 30 mm thick plywood coated with 10 mm shockproof plastic;
  • 30 mm thick plywood coated with 6 mm sheet metal
Attachable drawer units, perforated panel, lamp and power panel for the heavy duty workbench are ordered separately via the tab COMPONENTS.

Attachable drawer unit with door TMB-01/VT

Attachable drawer unit with drawers DR-04/VT

Hinged LED lamp DL/VT

Perforated panel

Power panel EPA/VT
