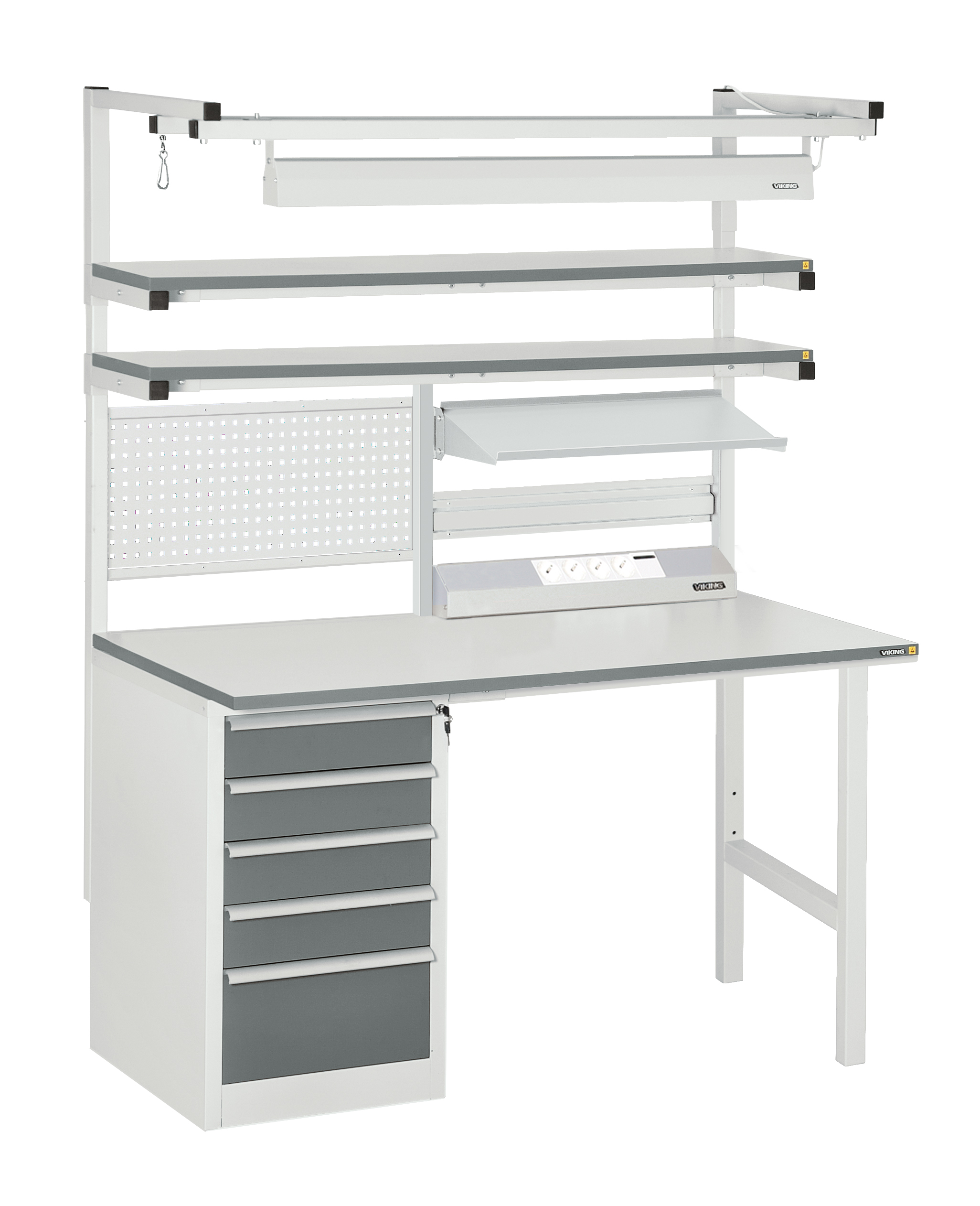

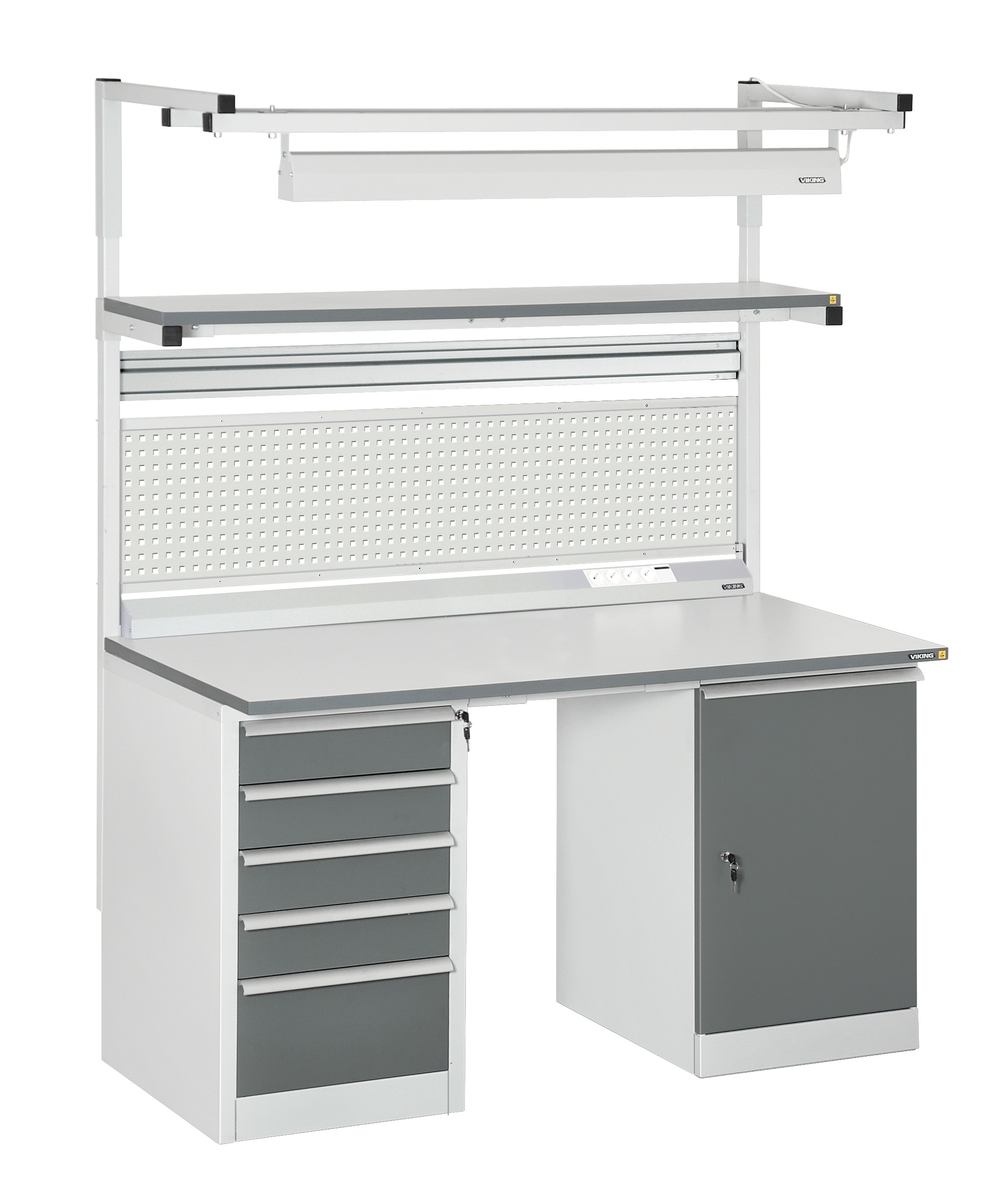

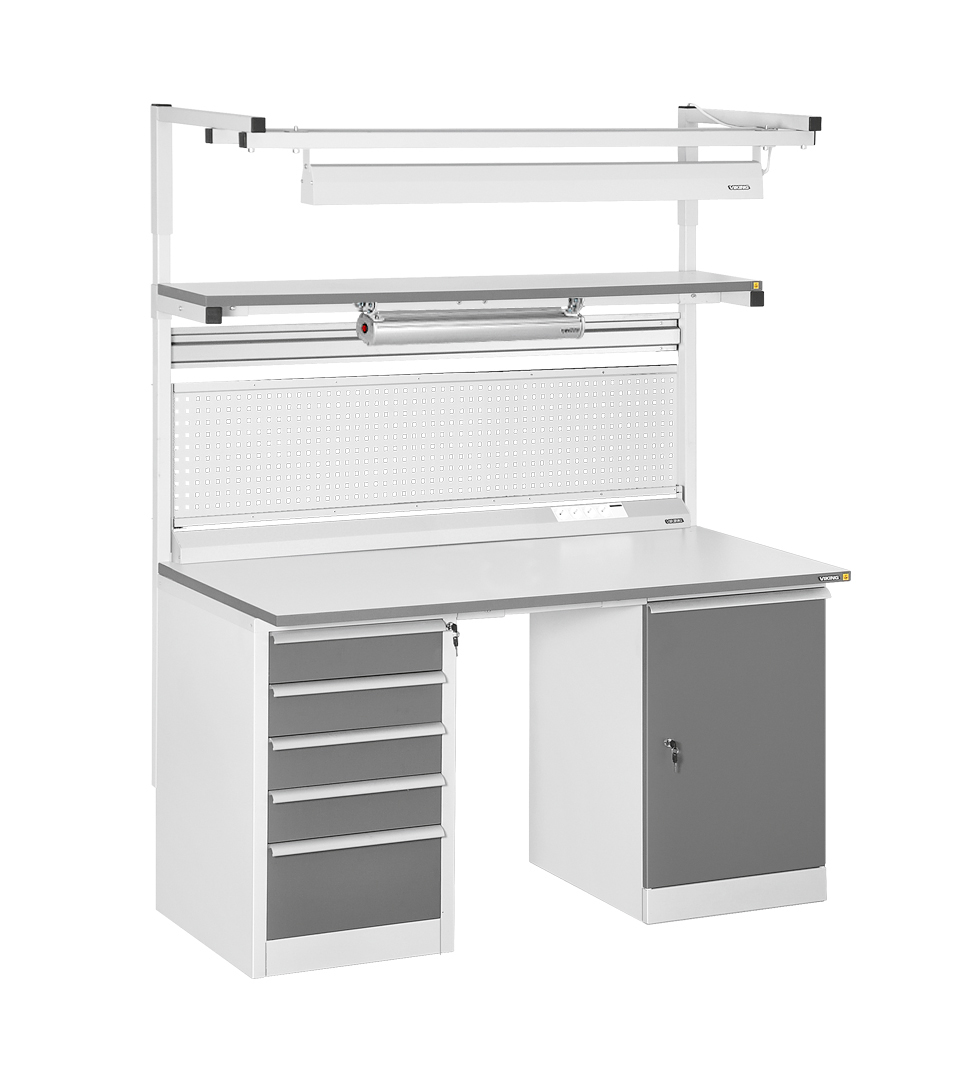

CONSTANT workbenches
Select options
Read more about additional modules
These workbenches can not be
Load capacity:
300 kg
Temperature resistance:
300°С

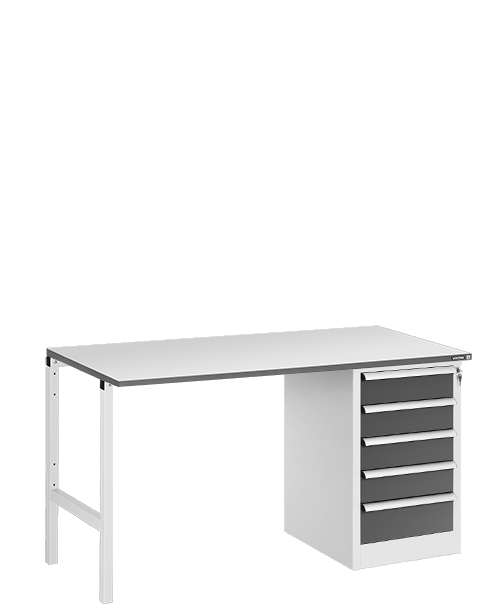

As a support, Constant workbenches can have:
- Cabinet unit with 5 drawers on telescopic runners and a lock (+DR-05)
- Cabinet unit with 3 bigger drawers on telescopic runners and a lock (+DR-03)
- Cabinet with 2 shelves and a lock (+ TMB-01)
- Cabinet with 1 drawer and 2 shelves in a locked section (+ TMB-02)
- Legs
In any combination, except for 1200 mm workbench that must have legs as one support.
PO Main shelf
Rear racks included.
- 2 versions: 30 cm depth and 40 cm depth
- Height adjustment: 1000 — 1850 mm
- Load capacity: 50 kg
PO/1 Additional shelf
Requires PO Main shelf to be installed.
- Height adjustment: 1100 — 1800 mm
- Load capacity: 50 kg
Power panel (½ EP Power panel)
Basic configuration consists of 4 sockets placed in an aluminium case with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack.
- Nominal load capacity: 10 A
- Grounding cord
cross-section : 0.75 mm
DL/A Workbench lighting
DL/A Workbench lighting is placed in an aluminum case with 2
- Length: 1200 mm
- Height adjustable
- Illuminance at 1000 mm distance: 1200 lux central and 800 lux peripheral

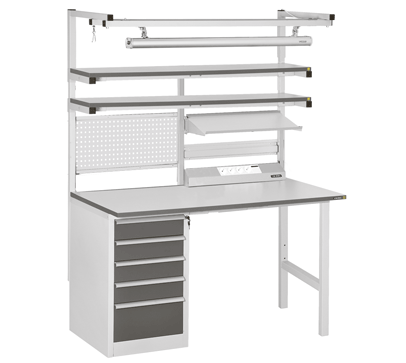

DL/S Workbench LED lighting
The case for lighting unit is made of aluminum, light direction regulation provided
2 versions: 900 mm length (for workbench width 1200 mm) and 1200 mm length (for 1500 mm and 1800 mm width workbenches)
- Light source: LED lamps (45/60 pcs.)
- Light flux: 4725/6300 Lm
- Power consumption: 33/45 W.
- Material of diffuser: opal acryl
- Height adjustable: 500 mm - 1500 mm
Under-shelf local lighting DL/N
Additional local LED lighting can be mounted to any workbench series Main shelf and Perforated panel.
- 2 versions: 60 cm length and 90 cm length
- Angle adjustment 120°
Middle upright for all items
Required to hold any ½ item. 3 sizes to match standard workbench width.
RK Bin rail (½ RK Bin rail)
Aluminum rail for bin storage placed along workbench length.
- Load capacity: 10 kg
PFP Perforated panel (½ PFP Perforated panel)
The panel can be equipped by different holders for additional equipment and tools storage.
PN Sloped shelf
Angle adjustment provides comfort monitoring of working equipment.
- Load capacity: 50 kg
IP Cantilever
Cantilever is designed for
Individual requirements and customized layouts are welcomed.
The information and/or documents contained in this website do not constitute an offer.
To learn more please fill out the form and click send.
