Fume extraction systems FumeCubeLITE, FumeCube, FumeCube2

Purex fume extraction systems are designed in conjunction with some of the world’s largest Contract Electronics Manufactures and Equipment Providers to help:
  • Prevent damage to production machinery
  • Reduce downtime for cleaning and maintenance
  • Protect personnel from harmful fumes
  • Reduce product rejects due to poor production performance
  • Maintain a constant extraction rate to ensure stable temperature profiles
  • Deliver long filter life
  • Interface with the production equipment
Fume Cube line units are used for:
  • Soldering assembly
  • Gluing and chemical treatments
  • Laboratory/cleanroom tasks
  • Rework and repair

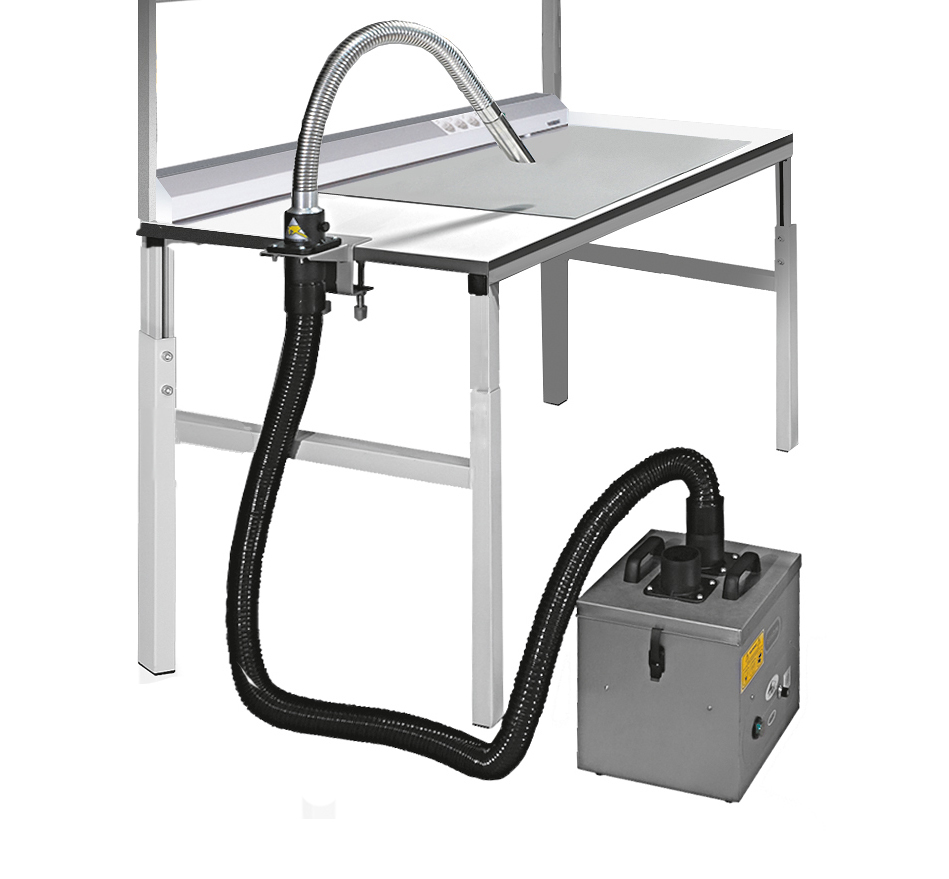

The FumeCubeLITE is a low cost, portable system for one or two users, Fume Cube and Fume Cube 2 are more sophisticated and functional arm extraction and purification systems, which are used to protect personnel from hazardous particles and fumes.

Systems Features:
  • Precision made from stainless steel
  • Low capital and running costs
  • Quick change pre-filters deliver longer filter life
  • Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
  • Activated carbon filtration removes harmful gas
  • Simple to install and quiet in operation
  • Easy to relocate
  • Optional interfacing option
Technical features
Voltage 230(120)
Wattage (kW) 0.14 (0.107)
Noise intensity, dBA  60
Dimensions (mm) 308х294х366
Power cable 2 m
ON/OFF switch On rear
Frequency (Hz) 50/60


FumeCubeLITE FumeCube FumeCube2
CODE 072100 072066 072065
Numbers of arms 1 or 2 1 2
Filters pre-installed

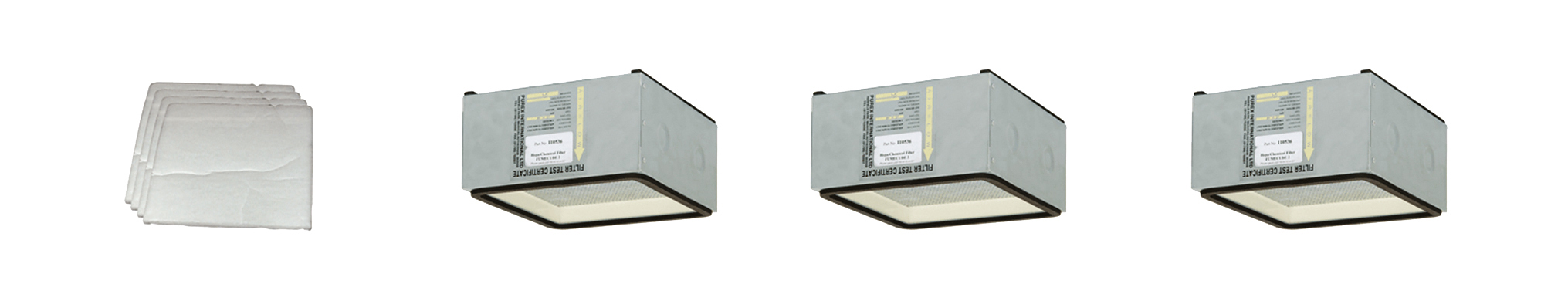

Prefilter pad + main HEPA/Chemical filter

Warning system

-

VariColour filter blocked watning system
Airflow Fixed airflow - 190 m³/hr in free air Automatic flow control and speed control (adjustable airflow)

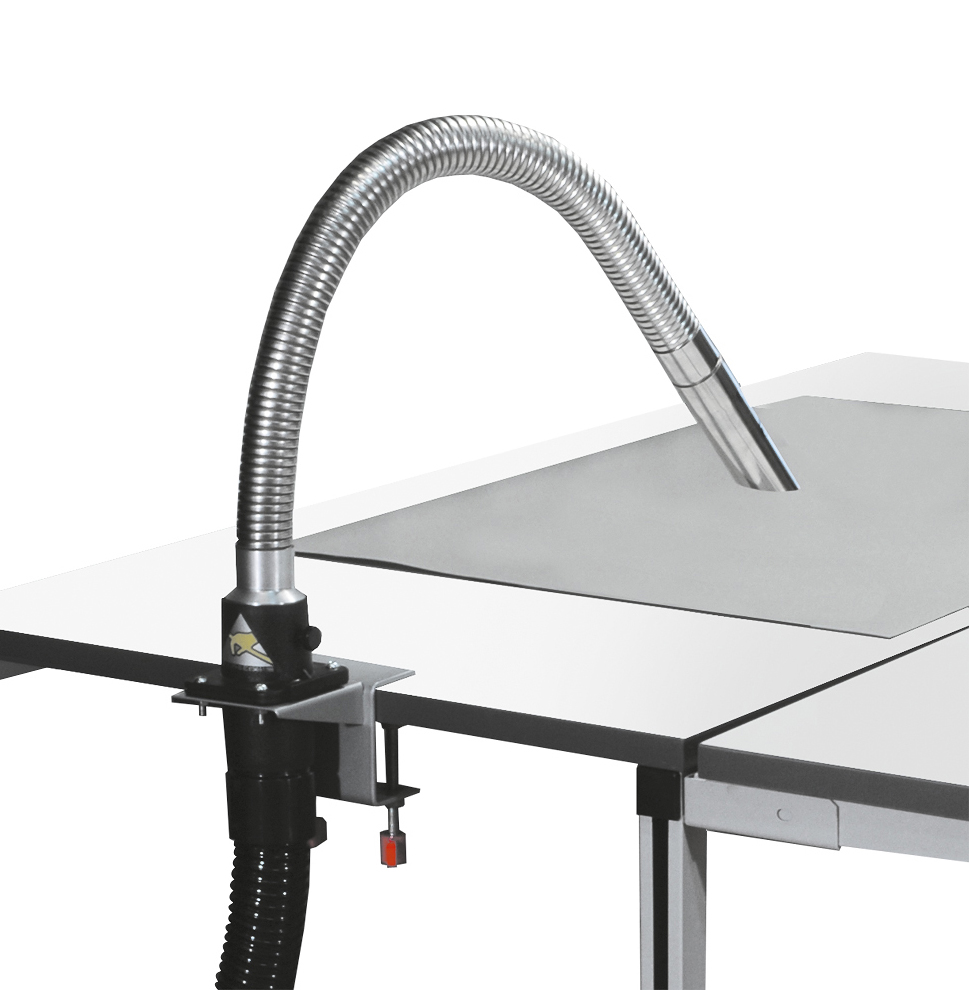

Arm kit

One or 2 pieces of 100294, 100295 or 100295 ESD kits should be ordered separately
