Modular ESD trays

Standard range of trays with a set of modular dividers. This new item will reply to various need for convenient storing and transporting small PCB’s on sensitive components.

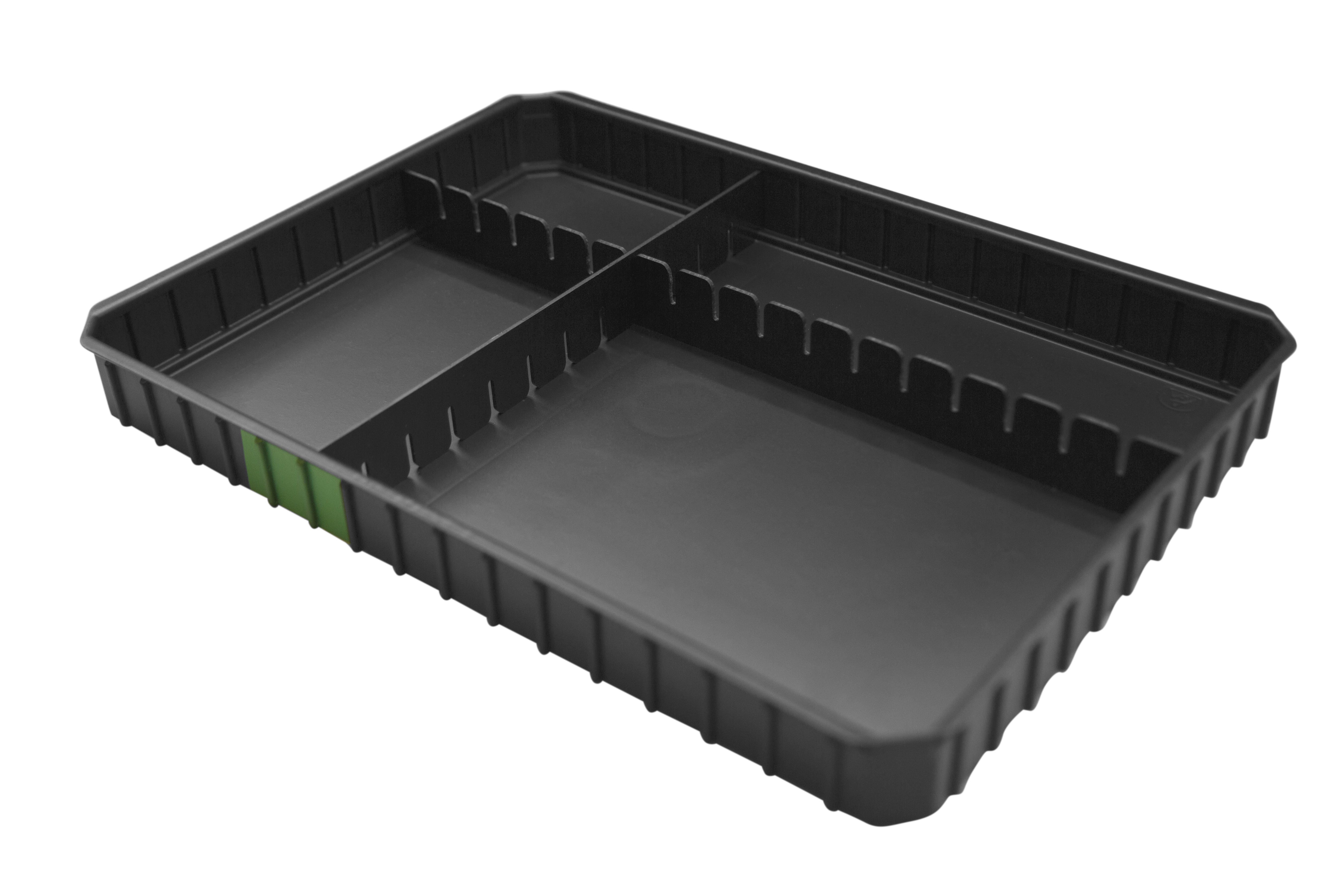

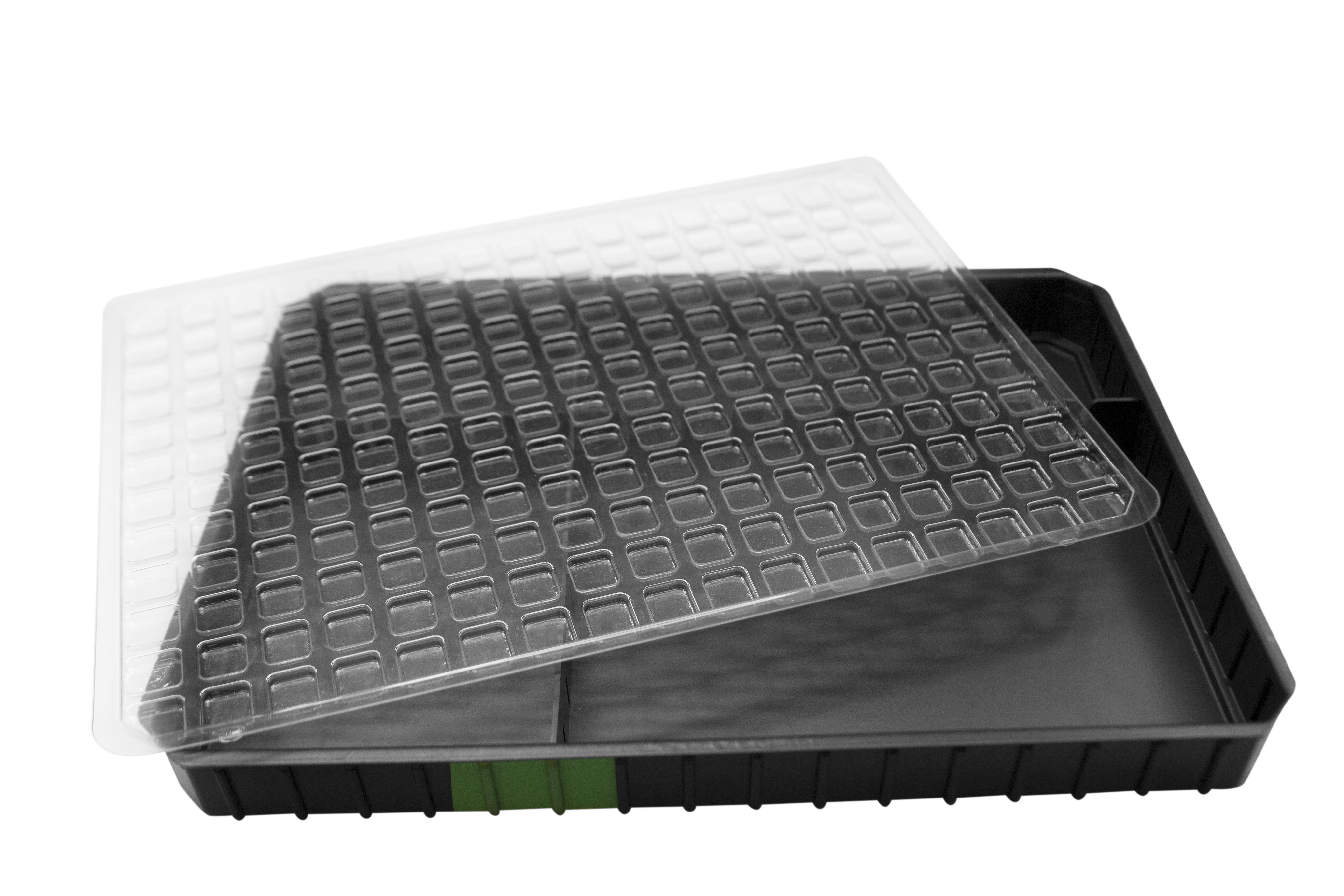

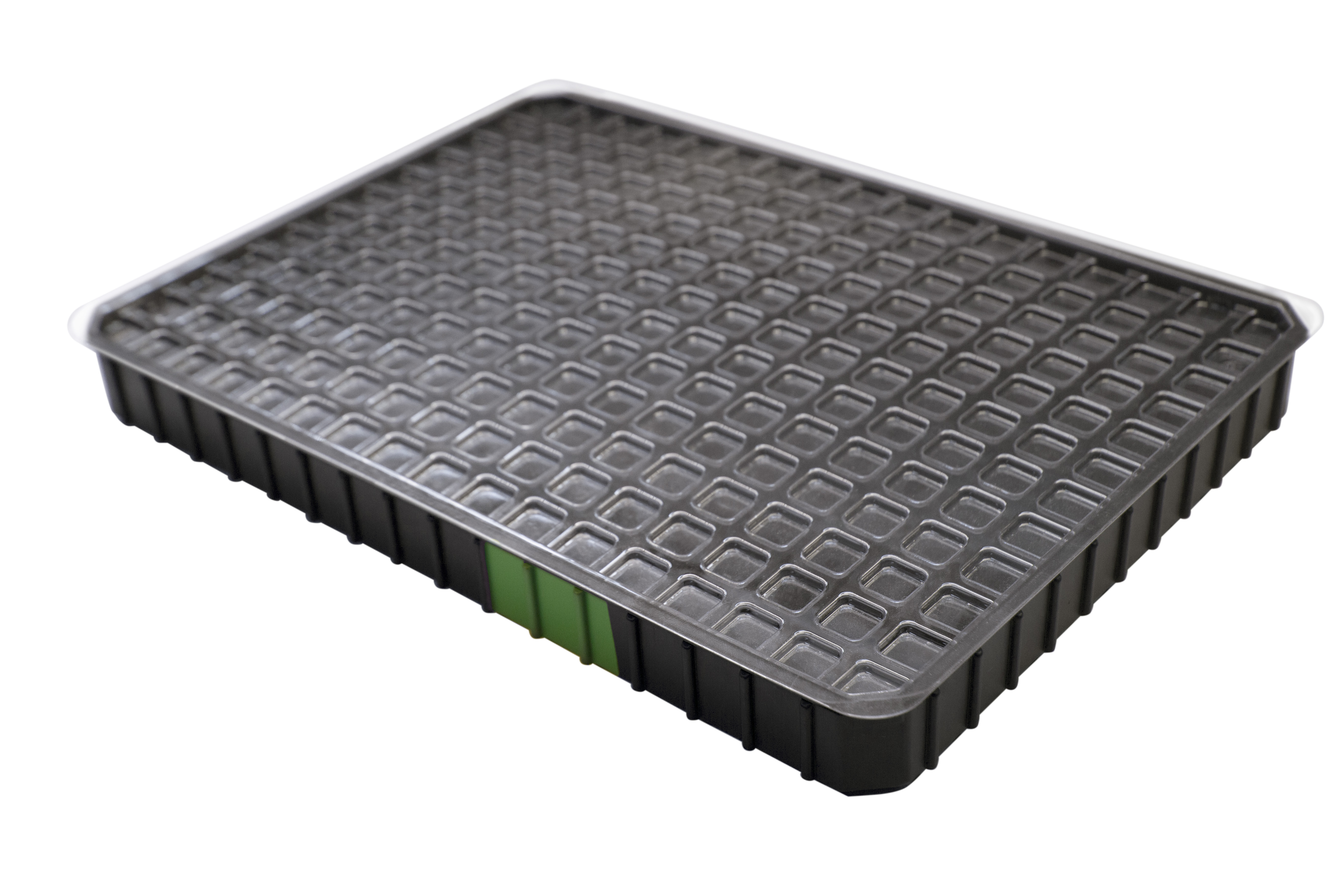

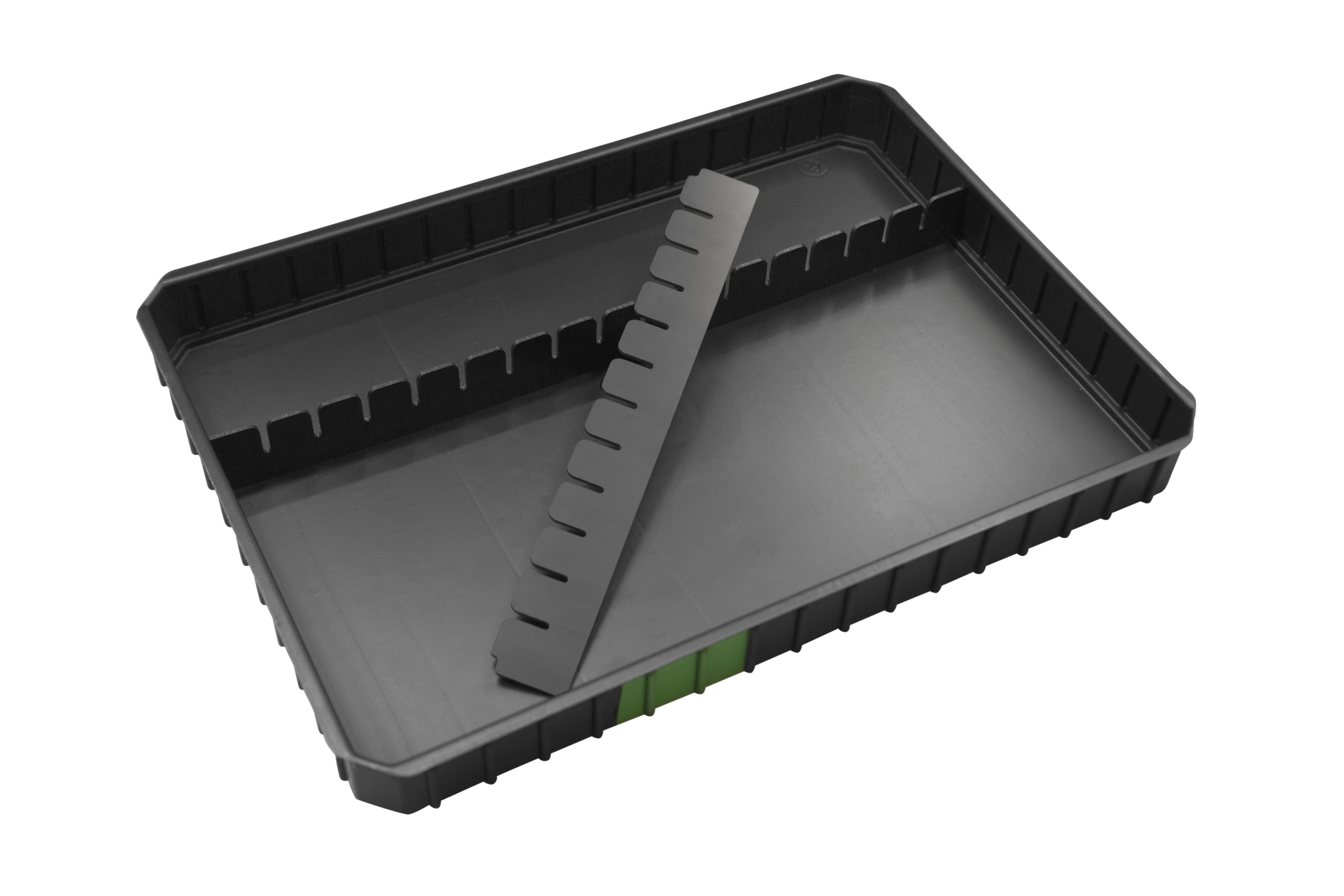

Stackable tray for components storage with transparent lid and removable dividers that should be ordered separately. Lid and dividers are clipped on the tray.

The system with dividers provides the possibility to organize 2 to 204 cells for components storage. Minimum size of the cell is 15×15 mm

Select options

Select options Related products

Select options

Code	Type of unit	Dimensions, mm	Material thickness, mm	Type of material
24-401-9428	ESD tray for PCB's	355×255×36	1.5	Dissipative PS
24-213-9429	Transparent lid for the tray	355×255×5	0.8	Clear APET
23-177-9430	Long divider(16 notches)	347×2×30	1.8	Conductive PS
23-177-9431	Short divider (11 notches)	247×2×30	1.8	Conductive PS

Useful height of the tray with lid — 28 mm
