ESD quickfill magazines

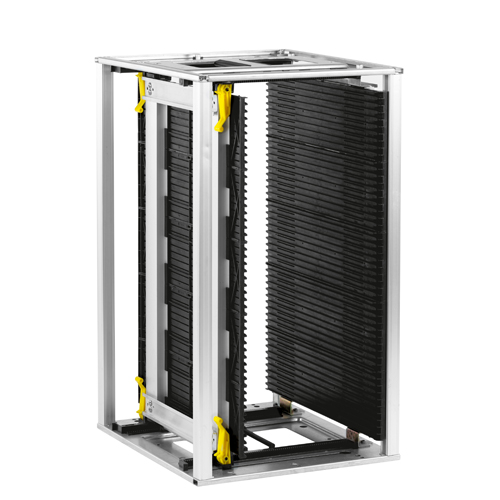

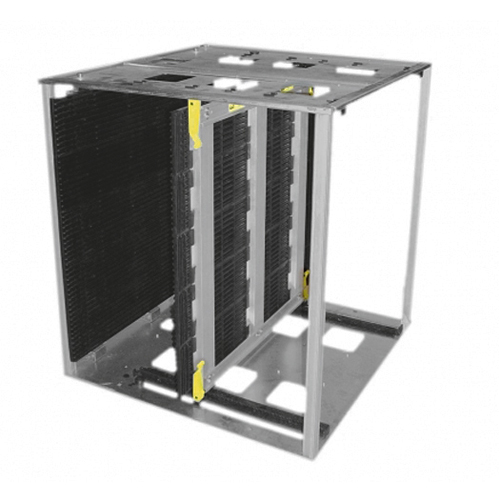

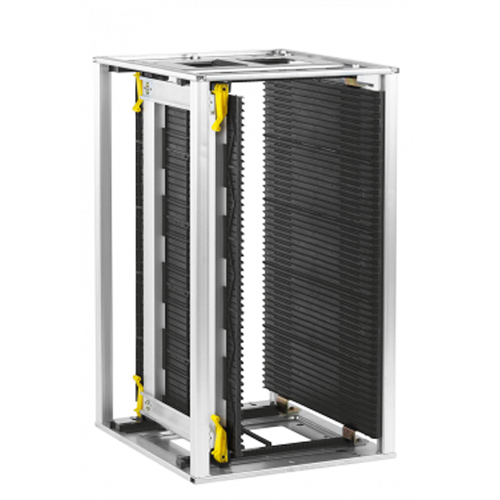

Quickfill magazines meet standard dimensions most frequently used on automated lines. Strong injection molded construction with metal reinforcement (top and bottom). Standardized plate that fits most popular brands on the market.

Not subject to accidental change in width; no wear of moving parts.
Partition made of assembled plastic parts
This system provides a better dimensional stability when strong temperature variations
Meant for 50 PCB’s

Material: Conductive PS (60°C heat resistance) or ABS/PC (110°C heat resistance) for plastic parts, galvanized Iron for metal parts.

Select options

Code	Dimensions	Material version	Min./Max. PCB size
22-152-3060	460х400х563	PS	50/300
22-152-4060	355x320x563		50/250
22-152-6060	460x400x563		100/310
22-152-7060	535x460x570		50/390
22-152-8060	535x530x570		120/460
22-152-1120	460x400x563	ABS/PC	50/300
22-152-2120	355x320x563		50/250
22-152-3020	535x460x570		50/390
