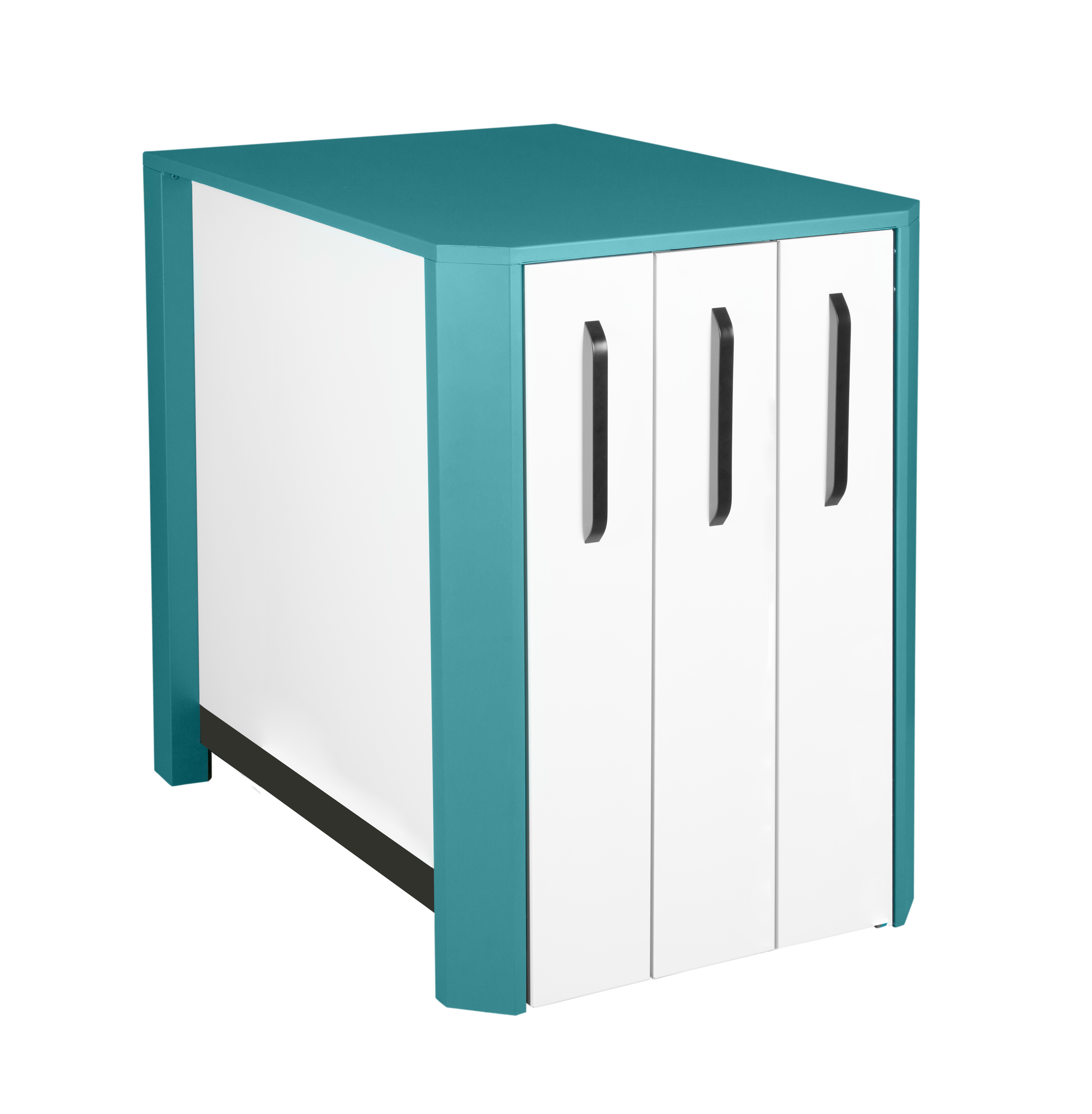

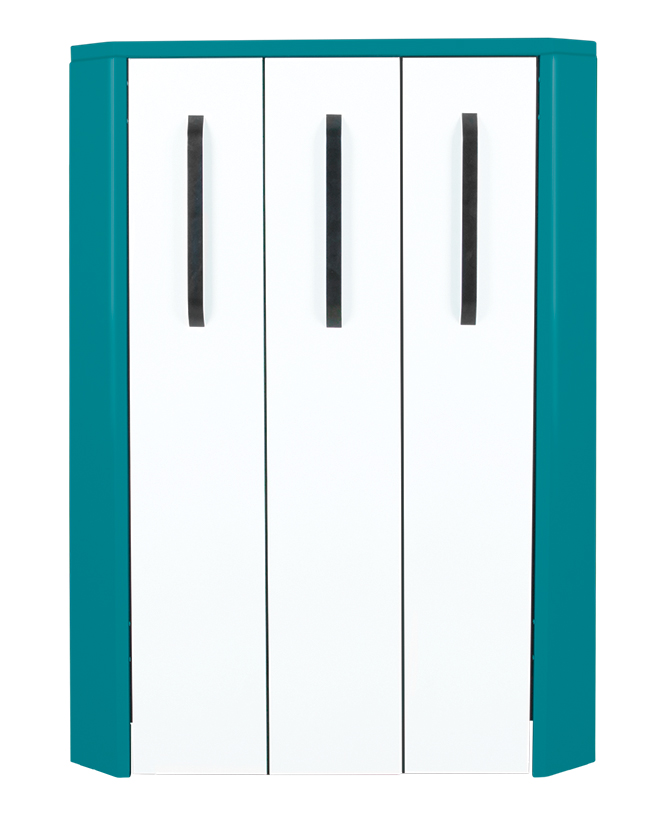

Titan series reinforced tools cabinet can be used for milling, drilling and CNC lathes tools storage, as well as punches and matrix plate-bending tools.

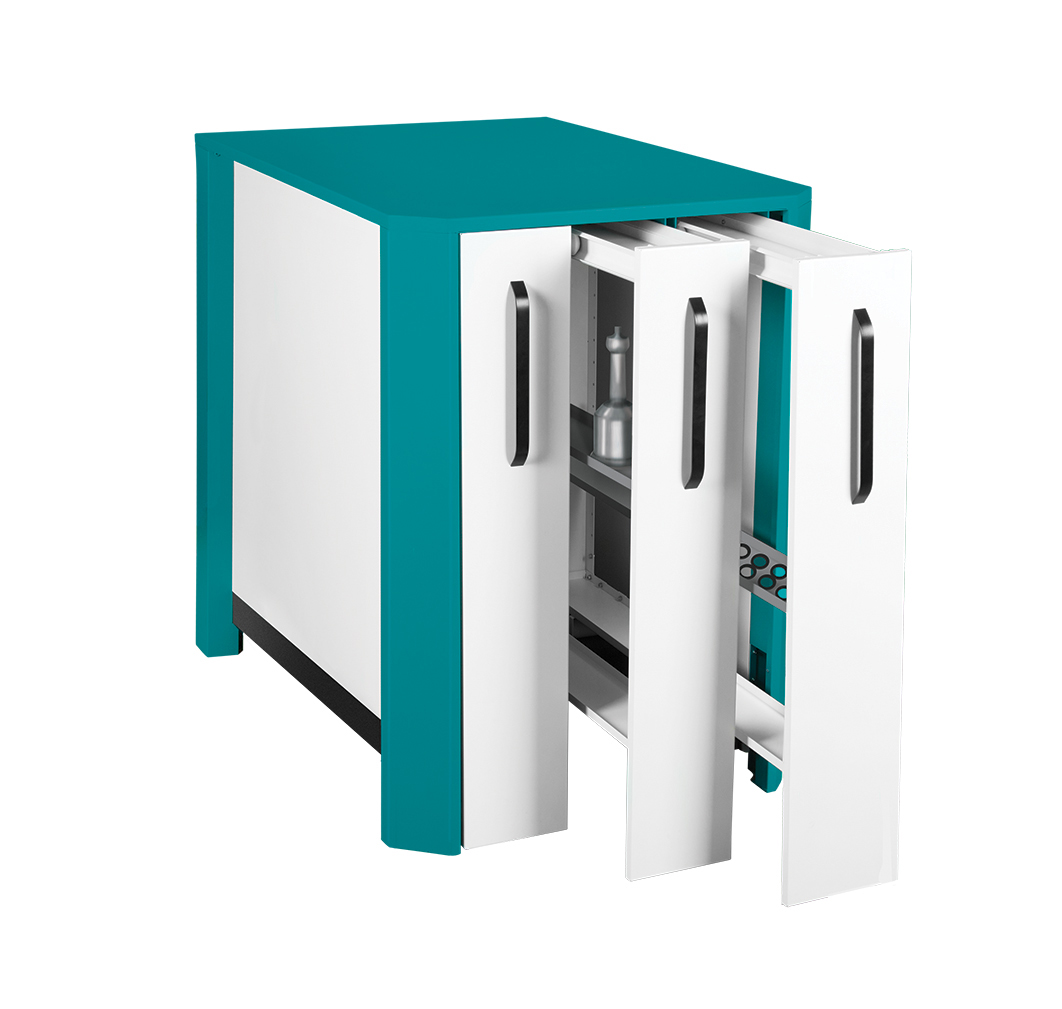

Inner perforation of telescopic drawers allows mounting shelves for different tools storage and adjusts shelves’ height with a 25 mm pitch.
- Dimensions of tools cabinet (W*H*D) 860*1200*1300 mm.
Inner dimensions:
- Height of retractable console: 900 mm
- Dimensions of shelves: 140*1200*30 mm
- Weight – 130 kg
Default colors combination is RAL 5021 (turquoise), RAL 9005 (black) and RAL 9010 (white). Matte paint texture.
- Max load on construction – 700 kg
- Max load on retractable shelves – 80 kg

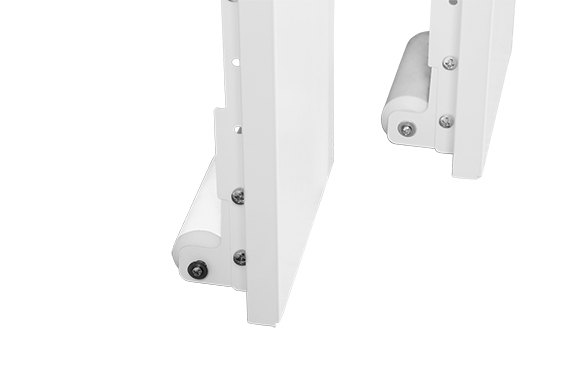

Demountable construction provides an easy transportation; an assembled cabinet can be moved with a stacking truck or a loader.
The inner perforation of cabinet’s shelves can be provided according to customers’ requirements.
