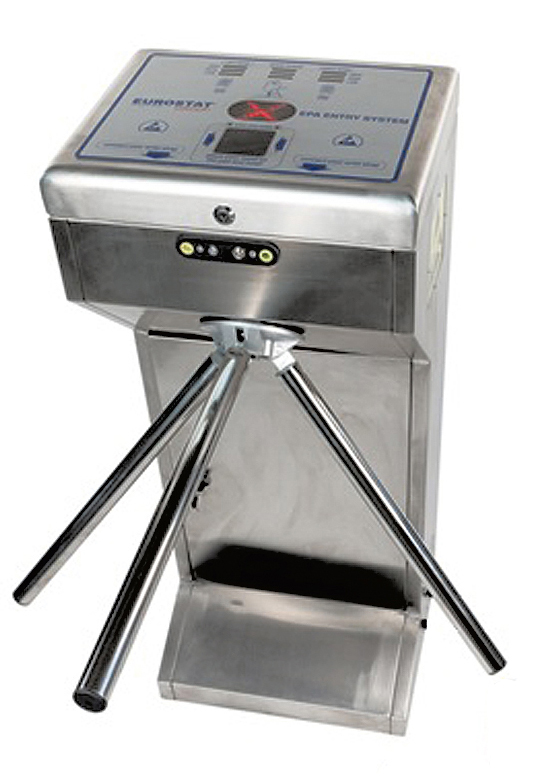

Fully automated turnstile system

Fully automated turnstile system. For companies who need to ensure that the operators cannot enter the EPA unless their wrist straps and footwear are compliant every day. The turnstile complies with ANSI/ESD S20/20 specification and ISO standards record keeping requirements.

Select options

This system tests operators quickly and automatically and will generate reports and e-mail results simultaneously to the ESD coordinator.

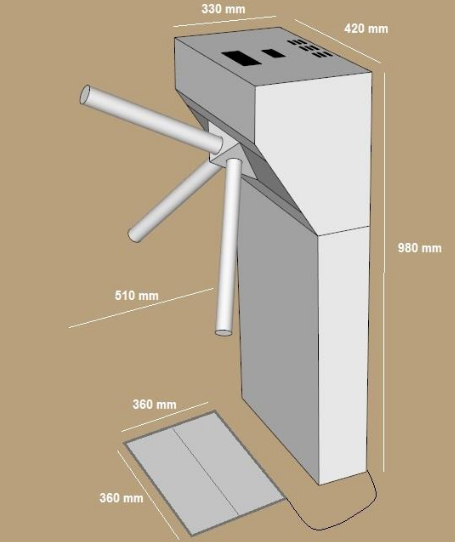

Turnstile Dimensions: 42 × 33 × 98 cm (W × D × H)
Clear passage width: 51 cm
Weight: 30 kg
Values indications: Red and green led, different for each kind of equipment
Voltage measurement: Measurement under permanent voltage of 20V +/- 5%
Warning: acoustic signal and green arrow / red no entry logos
Material: stainless steel Shoes electrodes
Dimensions: 36 x 36 cm (L × W)
Weight: 2.15 kg
Features: Electrodes left foot and right foot
Compliant with: RoHS Directive
2006/95/CE Directive – low voltage
2004/108/CE Directive – electromagnetic compatibility IEC 61340-5-1.

2 versions:

Automated turnstile system with footwear and wrist straps testers (61-200-3103).
"HIGH RANGE" automated turnstile system with card reader, footwear and wrist straps testers (61-200-3106).

The information and/or documents contained in this website do not constitute an offer.

To learn more please fill out the form and click send.

Select options

This system tests operators quickly and automatically and will generate reports and e-mail results simultaneously to the ESD coordinator.

Turnstile Dimensions: 42 × 33 × 98 cm (W × D × H)
Clear passage width: 51 cm
Weight: 30 kg
Values indications: Red and green led, different for each kind of equipment
Voltage measurement: Measurement under permanent voltage of 20V +/- 5%
Warning: acoustic signal and green arrow / red no entry logos
Material: stainless steel Shoes electrodes
Dimensions: 36 x 36 cm (L × W)
Weight: 2.15 kg
Features: Electrodes left foot and right foot
Compliant with: RoHS Directive
2006/95/CE Directive – low voltage
2004/108/CE Directive – electromagnetic compatibility IEC 61340-5-1.

2 versions:

Automated turnstile system with footwear and wrist straps testers (61-200-3103).
"HIGH RANGE" automated turnstile system with card reader, footwear and wrist straps testers (61-200-3106).

The information and/or documents contained in this website do not constitute an offer.

To learn more please fill out the form and click send.
