VKG А-2000 turnstile access control system to ESD Protected Area

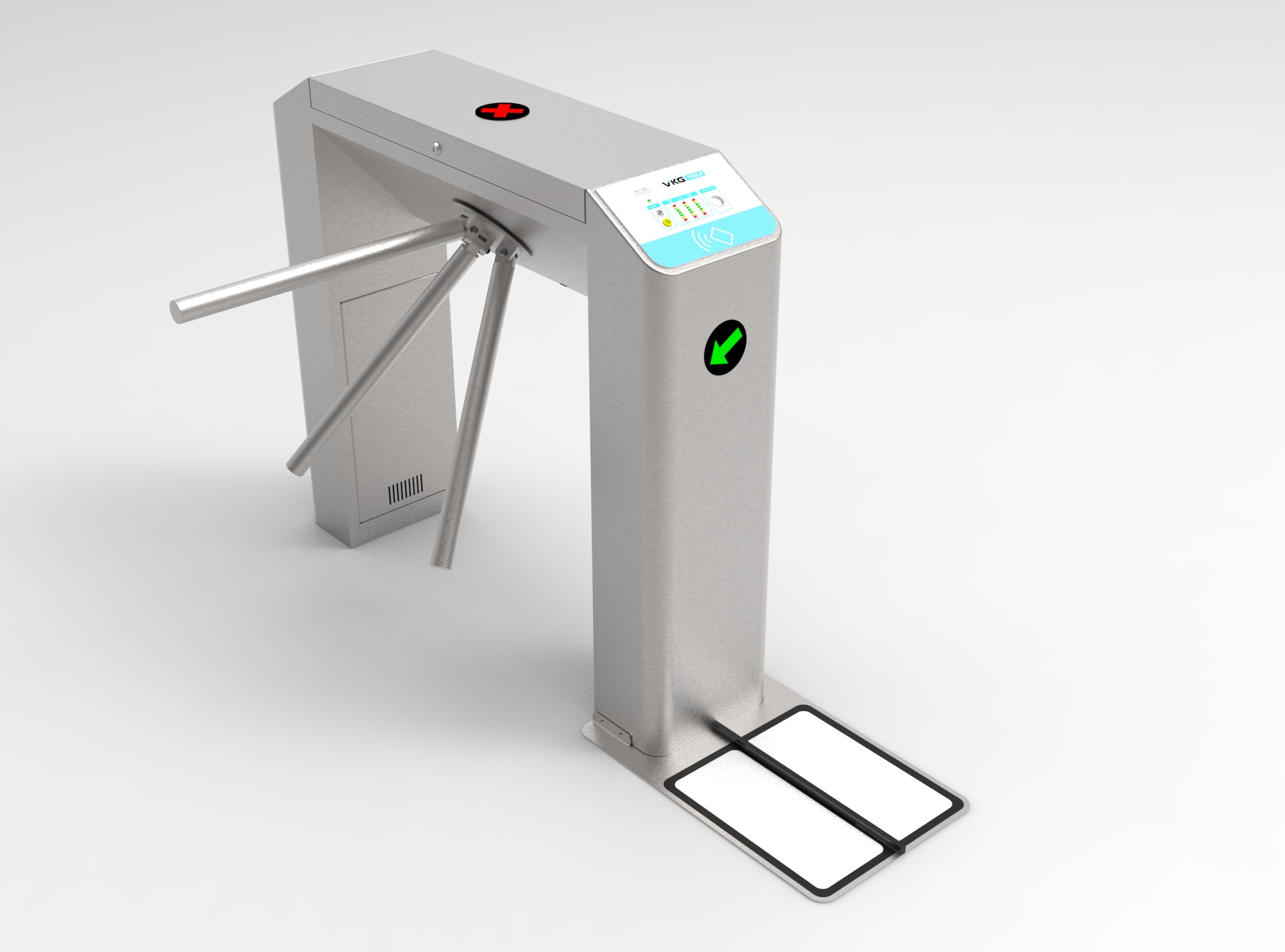

VKG A-2000 EPA access control system produced on a basis of a three-bar automatic turnstile.

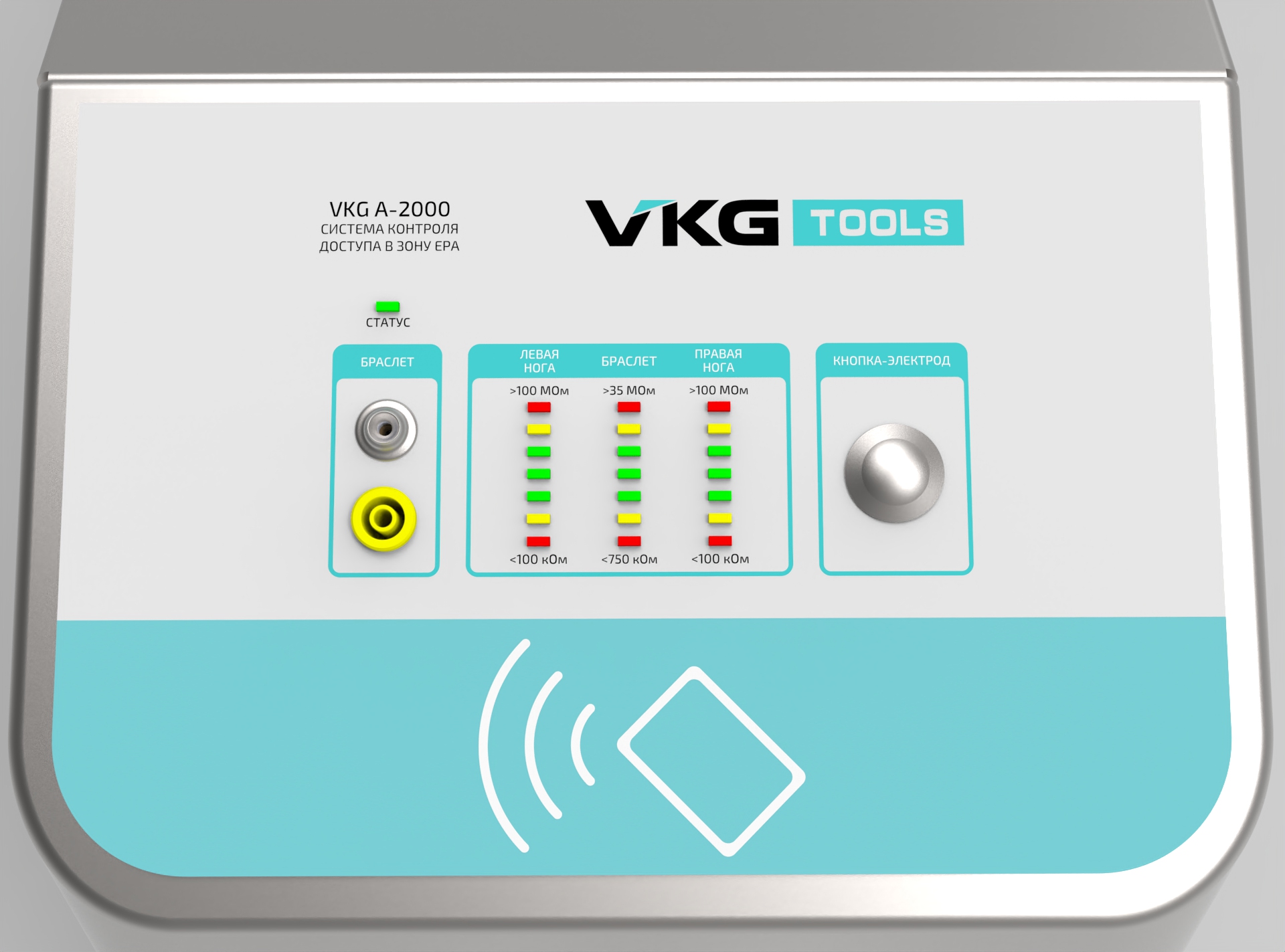

VKG A-2000 access control system consists of an automatic turnstile, a built-in testing device, an access cards reader,an ESD shoes testing plate and software that provides an operational check of ESD shoes and wrist straps for ESD standards compliance.

VKG A-2000 system ensures that only employees with appropriate & functional personnel grounding are allowed to enter the EPA.

Once the employee's card has been identified and the wrist strap and shoes test has been successfully completed, the employee is given access to the EPA. If the test fails, access to the ESD area is not provided.

Technical specifictions

Max quantity of identity cards in the system, pcs	5000
Time for wrist straps and shoes testing, sec	2
Direction of entry	both directions
Wrist strap control on/off mode*	included
Identity cards type	EmMarine
Data exchange interface	RS-485
Wrist strap connector types	15 mm button 3273-I-J jack
Operating conditions
Temperature, °С	15 to 35 °С
Relative humidity at 30 °С	less than 75%

Max. power consumption	220 ± 20
Dimensions, mm	280 × 990 × 1110
Dimensions with testing plate , mm	280 × 990 × 1545
weight, kg	50 кг

*switched by a toggle switch in the electronics compartment or using VKG TOOLS Access Manager software.

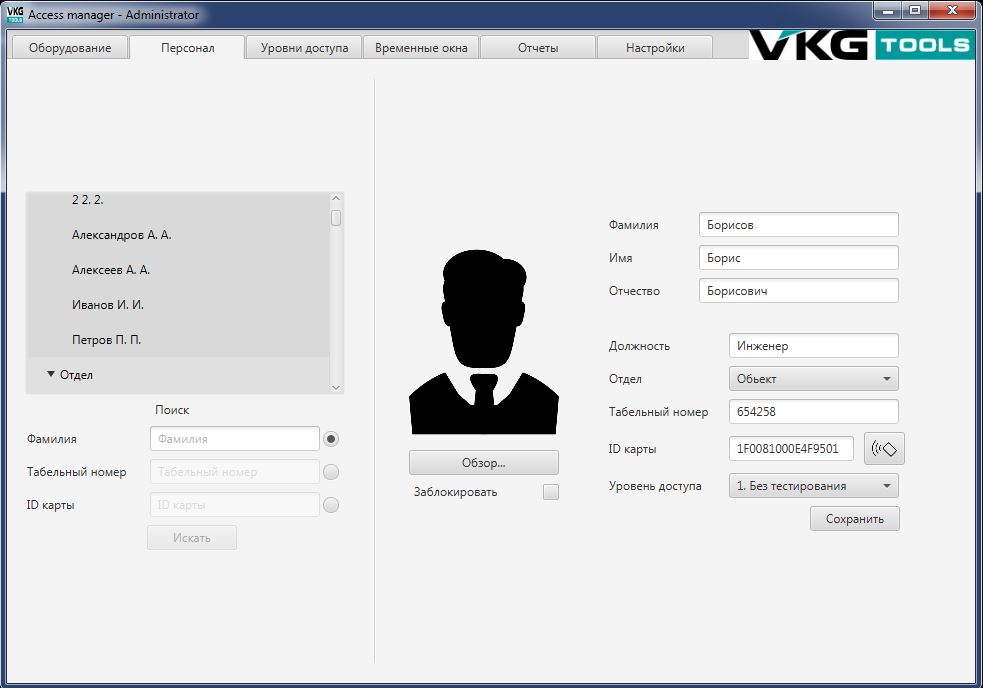

VKG TOOLS Access Manager Software

The VKG TOOLS Access Manager sofware allows to flexibly configure employee access levels and generate reports. The software consists of two levels:

VKG TOOLS Access Manager - Administrator allows you to add / remove employees, assign and program access levels, generates reports
VKG TOOLS Access Manager - Operator monitors in real time the information about employees entries through the A-2000 system, generates reports

Expand description

Select options

Select options Related products

Select options

VKG А-2000 turnstile access control system to ESD Protected Area supplied in a set:

A-2000 EPA Access Control turnstile with ESD shoes testing plate
Operation manual
USB-stick with VKG TOOLS Access Manager software.

Additionally supplied:

control panel for turnstile remote unlocking
EmMarine format access cards
