GM GAMMA Workbench

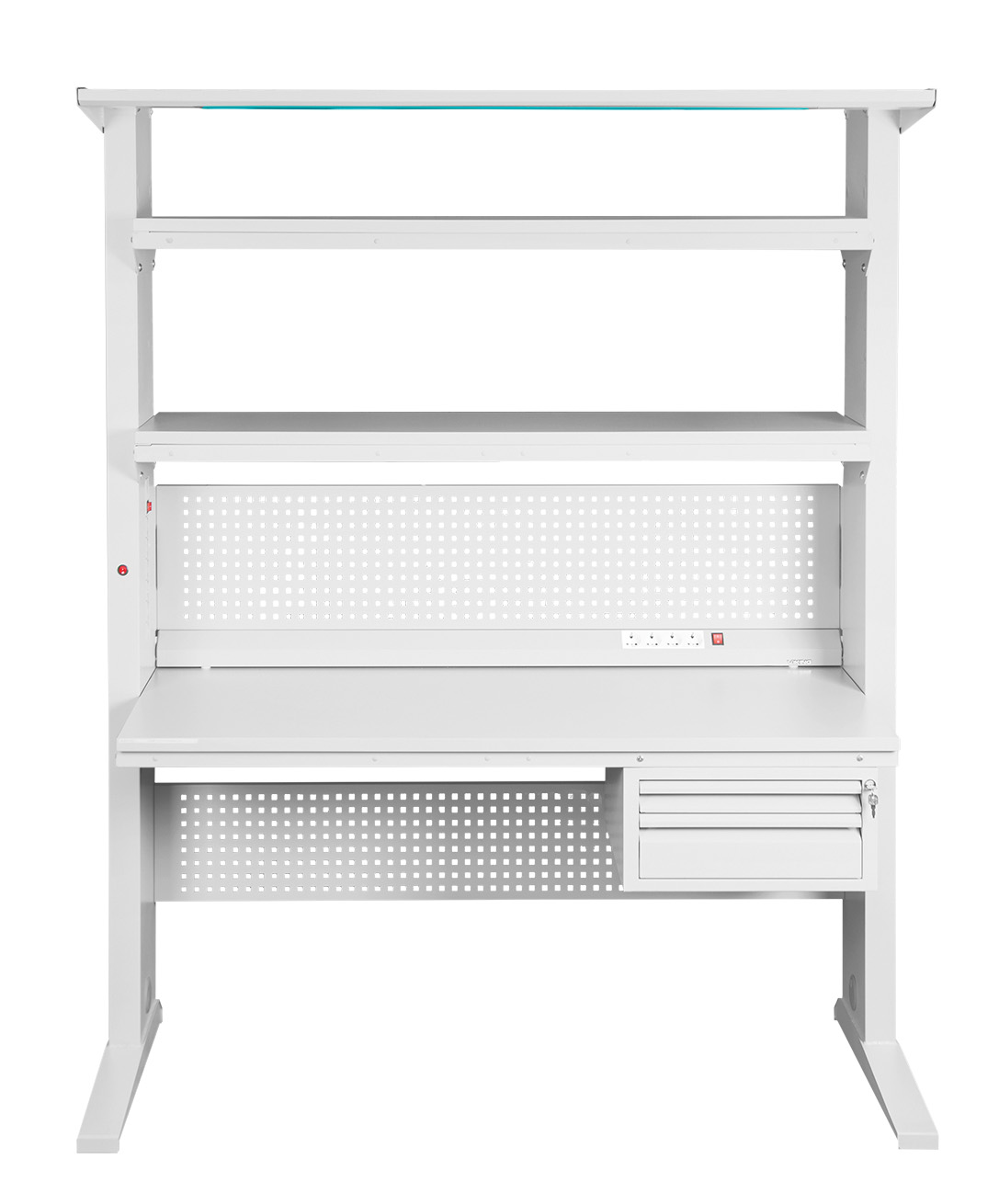

The workbench is supplied in a set: workbench with inverted-L shape side supports, main shelf, upper LED lighting, upper and lower perforated panels and side built-in power panel.

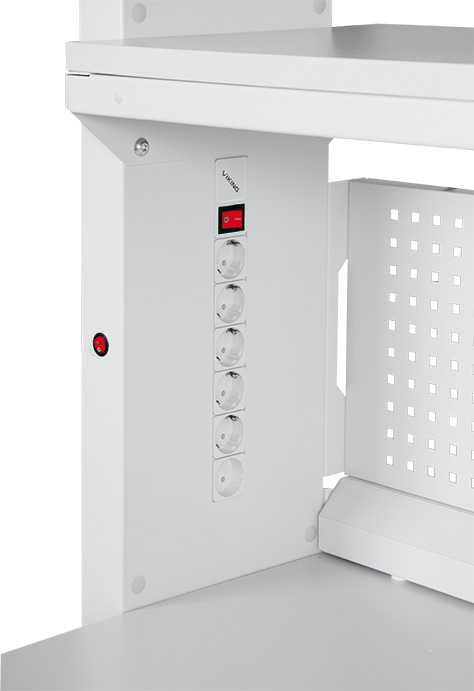

Available in two versions, depending on the location of built-in power panel: with the right (PR in coding, for example GM-18/ PR) or the left (L in coding, for example GM-12/L) power unit in the side panel. The built-in power panel is equipped with 6 sockets (5 with grounding and one without grounding) and a switch button.
Tabletop height adjustment: 3 positions - 740mm, 800mm, 860mm. Additional supports height adjustment - 20 mm.
Upper LED lighting is built into the top horizontal hanger above the tabletop.
- Color temperature 3950-4000 K;
- Luminous flux: 4490 Lm;
- Power consumption: 38 W;
- Provides at least 1260-lux illuminance at 1000 mm distance from the light source.
All technical communications are easily accessible by opening the board in side supports.
- for tabletop up to 200 kg
- for shelf up to 200 kg
Additional options:
Read more about additional modules
GM-PO/1 Additional shelf
- 1330-1870 mm with a 60 mm pitch
- depth 400 mm

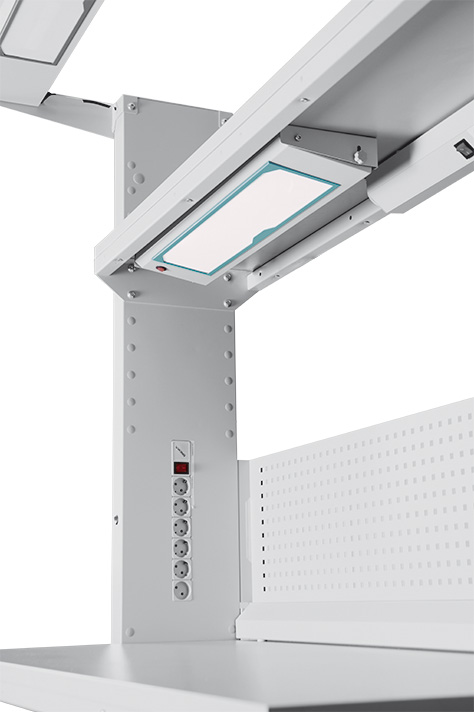

GM-DL-6 GAMMA Under-shelf LED Lighting
- Dimensions 748×50×177 mm
- Angle adjustment - 10°.
GM-EPA Power panel
½GM-EPA Half-size Power panel

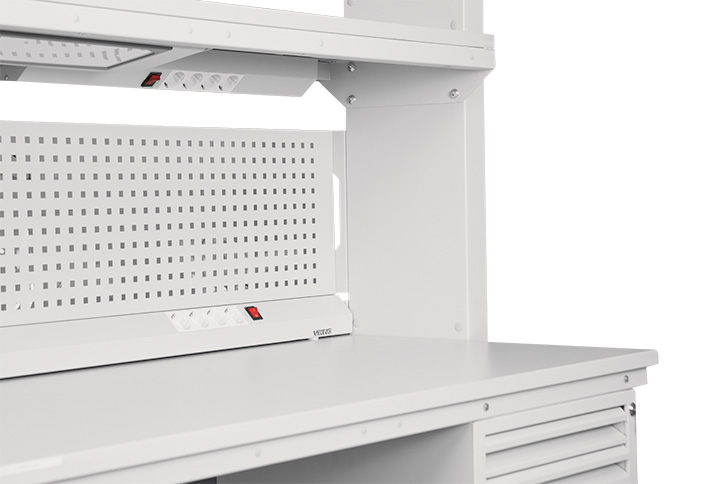

Half-size Power panel can be mounted below the main shelf or under the tabletop, GM-EPA Power panel main panel can be mounted on the tabletop with the front side to and fro.
An aluminum case/ two cases with four sockets, protective contact, switch and 3 m cable. Can be equipped with additional sockets, fuses, phone jacks and earth leakage circuit breakers.
Nominal load capacity: 10 A.
Optional drawer units TP-01/P, TP-02/P
Optional drawer units with reduced depth TP-10/P, TP-20/P
Storage solution for tools and components, no place on floor required. Those with reduced to 490 mm depth allow installing various additional equipment under a tabletop.

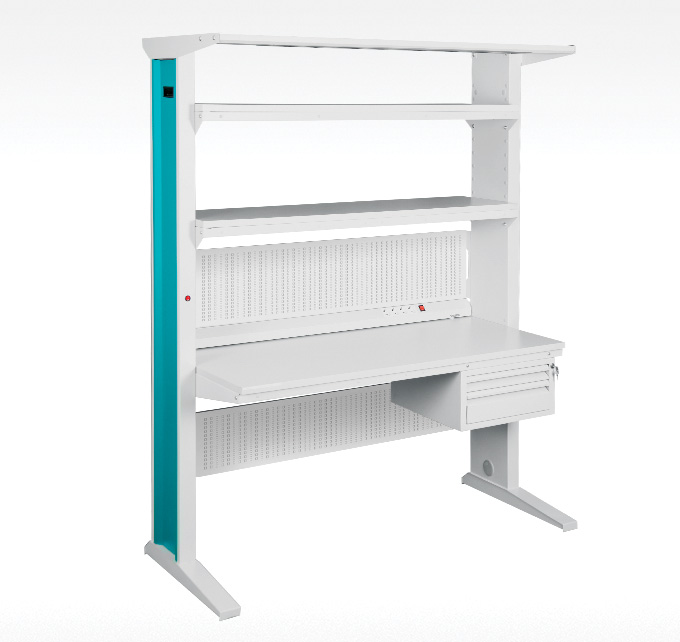

GAMMA workbenches are bicolored by default; the main color is light gray RAL 7035, additional – turquoise RAL 5021.
Technical version workbenches are supplied with gray (RAL 7035) edges, in antistatic version - with turquoise (RAL 5021) edges.
