Movable drawer units

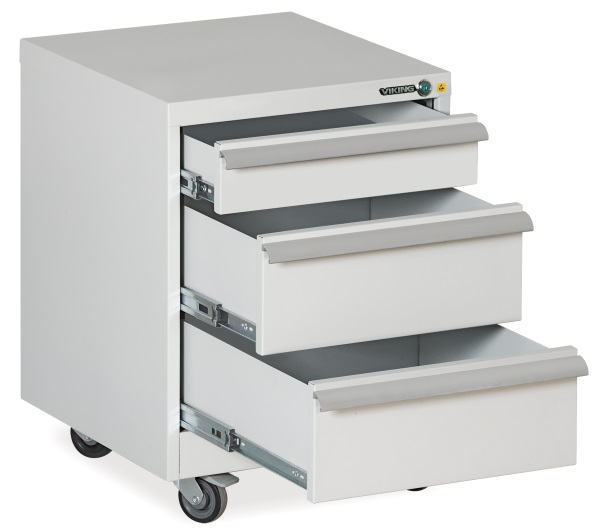

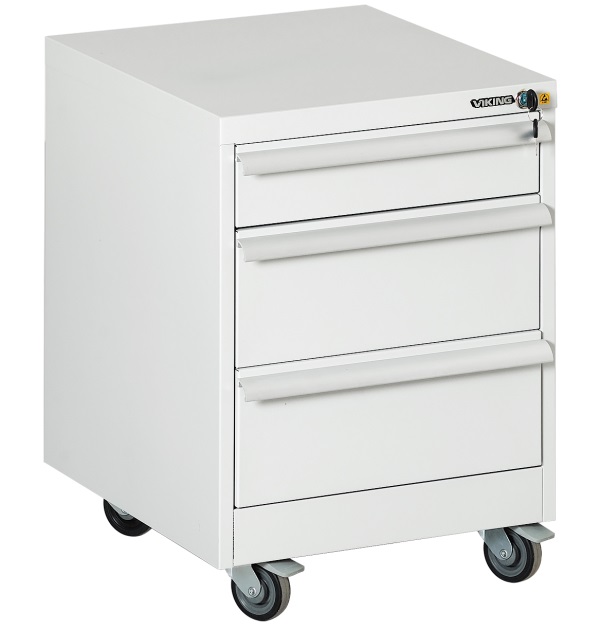

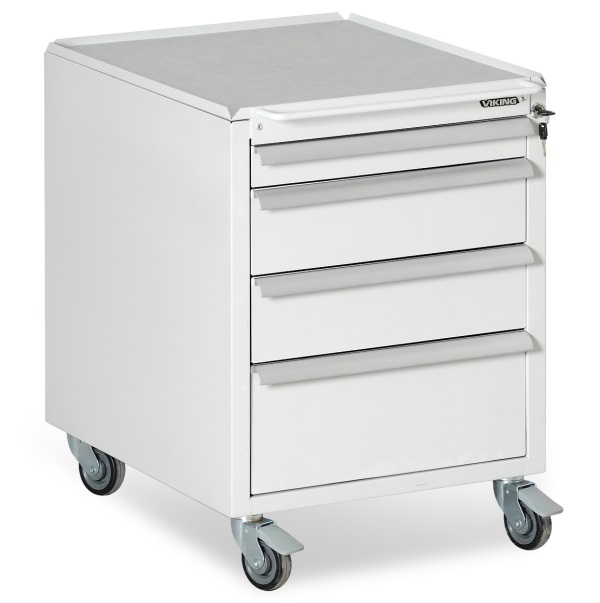

TP-01/S and TP-02/S movable drawer units are designed for tools and components storage.

  • Can be also used as an additional workplace.
  • Steel frame drawer units have central lock and 360 mm telescoping drawers.
  • Units have 4 rubber casters, 2 of which are with brakes.
Load capacity per drawer: 30 kg.

Drawers’ inner dimensions for different types are:
А — standard 400×45×505 mm
B — standard 400×100×505 mm
C — standard 400×160×505 mm


  TP-01/S   TP-02/S
Dimensions  490×580×635 mm  490×650×635 mm
Quantity of drawers   3   4
Types of drawers 2-B type, 1-C type   1-A type, 2-B type, 1-C type
 Weight   25 kg
  32 kg


When ordering, please, mention whether ESD or technical version and dark grey RAL 7012 or light grey RAL 7035 color required.
