Magnetic plates for wire harness workbench

Magnetic plates are used to hold different holders and retainers
 Type of magnetic plate  used for holders  dimensions of the plate

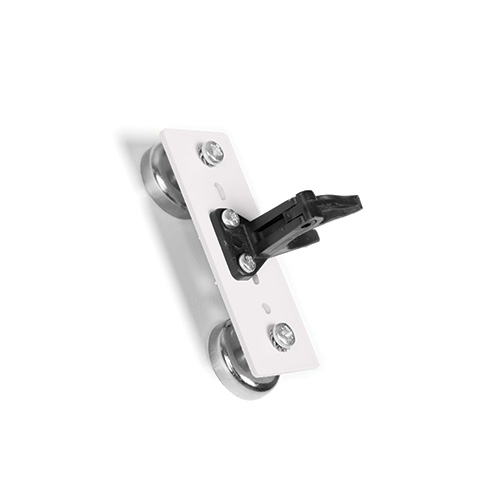

 MP-ZHG-1  RER75-S6-X

ER.5-E4-X

СРН.75-S8-X

CPL.75-S8-X
     30*80

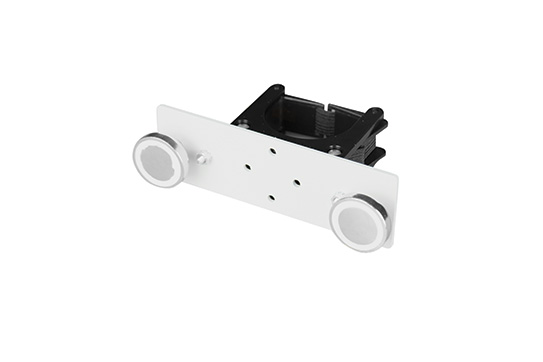

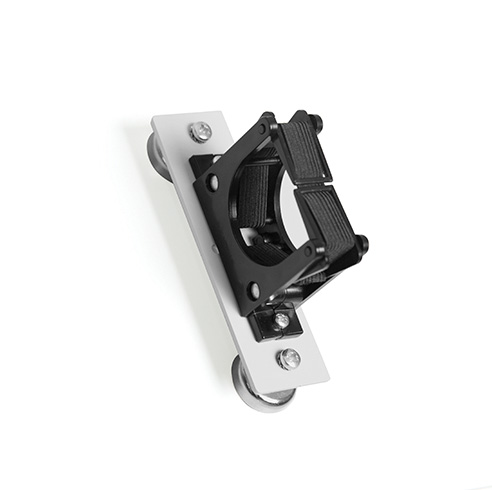

 MP-ZHG-2  RER2.0-S6-X
ER1.25-E4-X
    35*110

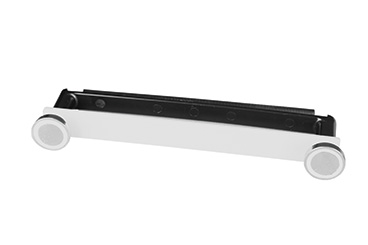

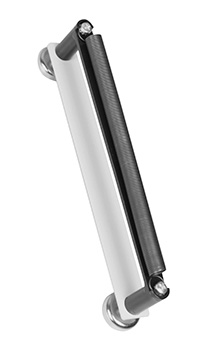

 MP-ZHG-3 SHH3-S8-X          20*190
 MP-ZHG-4 separate angle hook
 MP-ZHG-5 PBSC12-X
 MP-ZHG-6 PBSC3-X
