CLASSIC workbenches
Select options
2 versions: 900 mm length (for workbench width 1200 mm) and 1200 mm length (for 1500 mm and 1800 mm width workbenches)

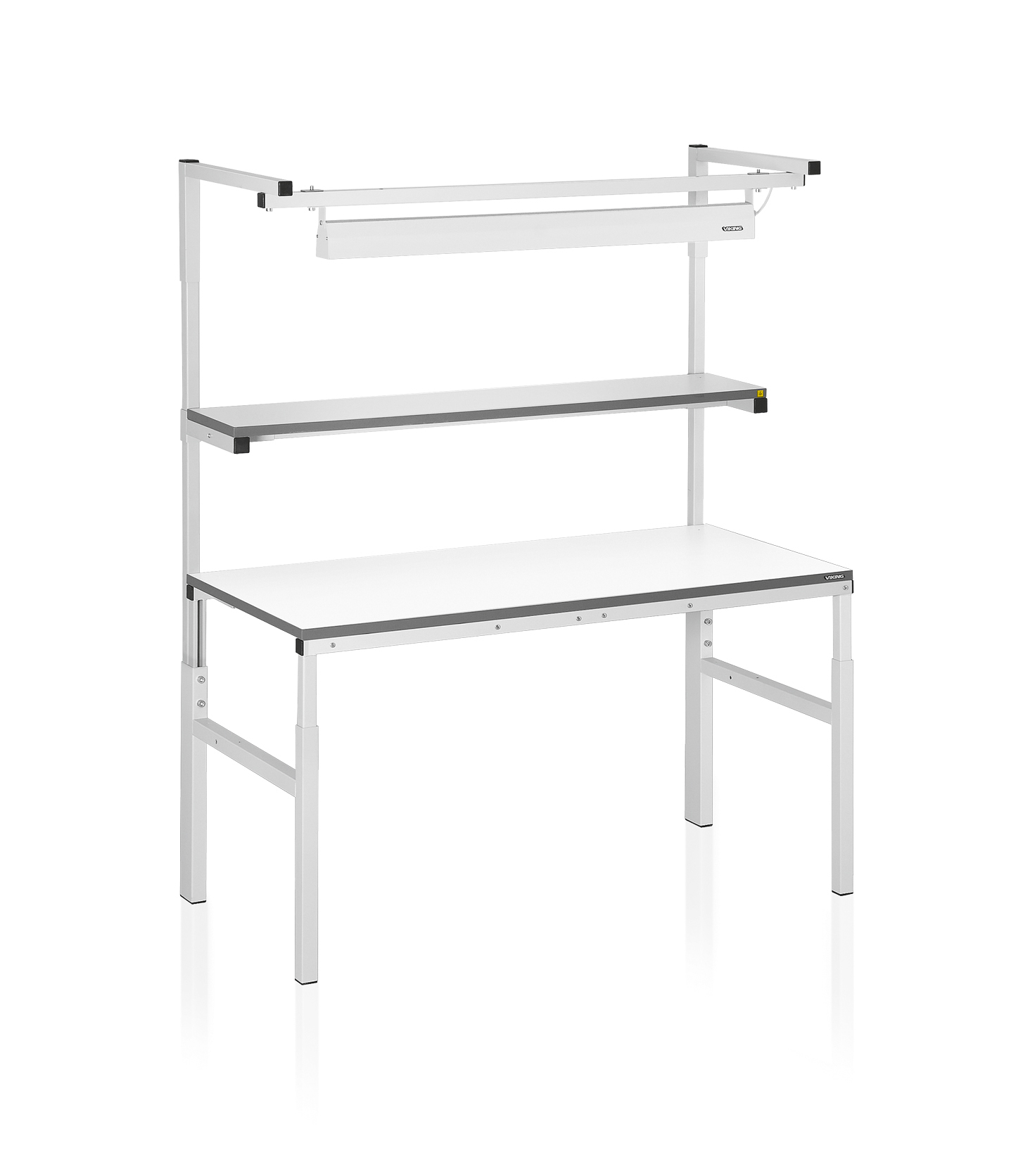

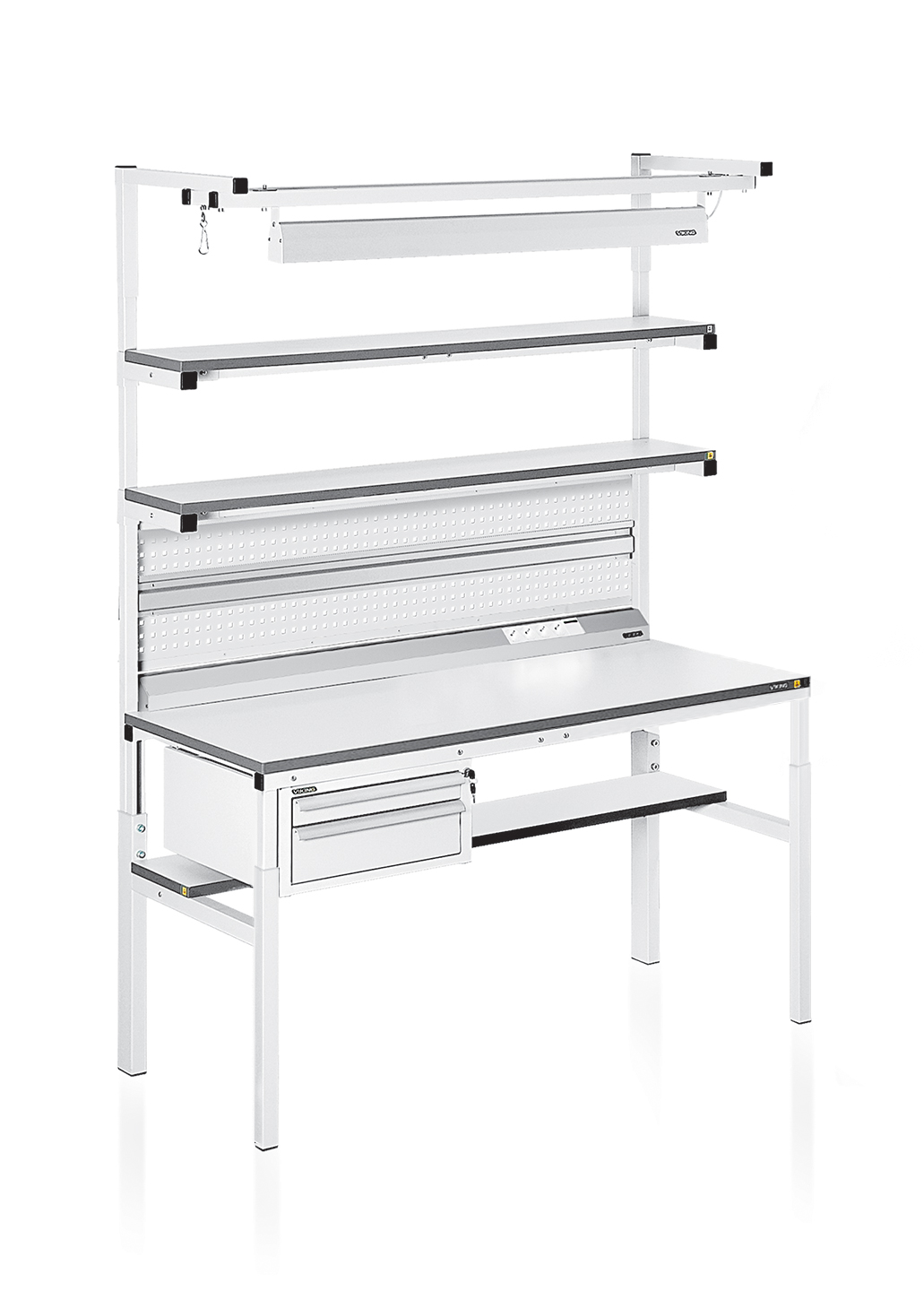

SR Workbench
These workbenches can be placed in a line to make a common working area with no gaps. Universal design allows fitting out the workplace with necessary equipment and drawer units.
Height adjustment:
650-950 mm
Load capacity:
300 kg
Temperature resistance:
300°С
| Code | Dimensions |
|---|---|
| SR-12-7 | 1200х700 mm |
| SR-15-7 | 1500х700 mm |
| SR-18-7 | 1800х700 mm |
| SR-12-9 | 1200х900 mm |
| SR-15-9 | 1500х900 mm |
| SR-18-9 | 1800х900 mm |
Read more about additional modules
PO Main shelf
Rear racks included.
- 2 versions: 30 cm depth and 40 cm depth
- Height adjustment: 1000 — 1800 mm
- Load capacity: 50 kg
PO/1 Additional shelf
Requires PO Main shelf to be installed.
- 2 versions: 30 cm depth and 40 cm depth
- Height adjustment: 1100 — 1800 mm
- Load capacity: 50 kg
PO/2 Underneath shelf
Not compatible with optional
- Load capacity: 100 kg
EP Power panel
Basic configuration consists of 4 sockets placed in aluminium case with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack.
- Nominal load capacity: 10 A
- Grounding cord
cross-section : 0.75 mm
DL/A Workbench lighting
4 DL/A Workbench lighting DL/A Workbench lighting is placed in an aluminum case with 2
- Length: 1200 mm
- Height adjustmentable
- Illuminance at 1000 mm distance:
- 1200 lux central
- 800 lux peripheral
DL/S Workbench LED lighting
The case for lighting unit is made of aluminum, light direction regulation provided2 versions: 900 mm length (for workbench width 1200 mm) and 1200 mm length (for 1500 mm and 1800 mm width workbenches)
- Light source: LED lamps (45/60 pcs.)
- Light flux: 4725/6300 Lm
- Power consumption: 33/45 W
- Material of diffuser: opal acryl
- Height adjustable: 500 mm - 1500 mm
Under-shelf local lighting
Additional local LED lighting can be mounted to any workbench series Main Shelf and Perforated panel. Provides uniform illumination level. 120˚angle adjustment.
RK Bin rail
Aluminum rail for bin storage placed along workbench length.
- Load capacity: 10 kg
PFP Perforated panel
Panel can be equipped by different holders for additional equipment and tools storage.
PN Sloped shelf
Angle adjustment provides comfort monitoring of working equipment.
- Load capacity: 50 kg
IP Cantilever
It was designed for

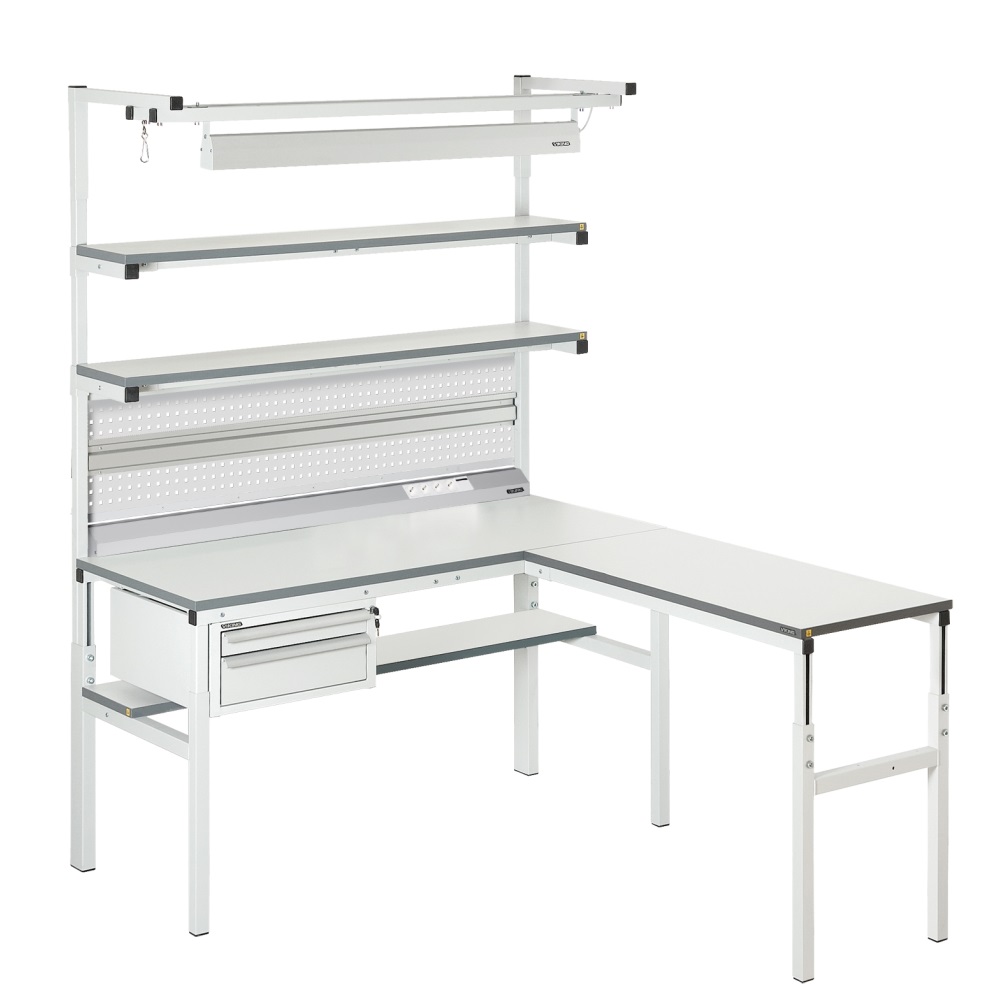

US-1 Corner worktop
Dimensions: 1200×500 mm

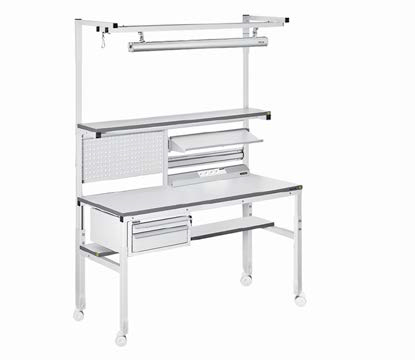

SR-K Classic workbench wheels set
Can be mounted to any Classic workbench, allows making it movable.
Optional drawer units
Storage solution for tools and components, no place on floor required.
Suspended drawer units TP-10/P and TP-20/P with reduced to 490 mm depth. It allows installing various additional equipment under a tabletop.
Dimensions:
- TP-01/P: 490 x 354 x 580 mm
- TP-02/P: 490 x 233 x 580 mm
- TP-10/P: 490 x 354 x 490 mm
- TP-20/P: 490 x 233 x 490 mm
Under-shelf local lighting
Additional local LED lighting can be mounted to any workbench series Main Shelf and Perforated panel. Provides uniform illumination level. 120˚angle adjustment.
Middle upright for all kind of workbenches
Middle upright is required for all 1/2 items, it consists of upright and transversal slat which differs according to workbench’s width.
Информация на сайте, не является публичной офертой.
Конечная цена может меняться в зависимости от условий поставки, наличия сырья и комплектующих на момент заказа.
Для получения подробной информации о наличии и стоимости указанных товаров и (или) услуг, пожалуйста, обращайтесь к нашим менеджерам через форму обратной связи.
When ordering, please, mention whether ESD or technical version, and whether dark grey RAL 7012 or light grey RAL 7035 color required.
Video assembly instruction for SR-15-9 Classic ESD workbench with shelves, perforated panel, power panel, bin rail and suspended drawer unit.Assembly instructions
Classic workbench assembly instruction
EPA power panel assembly instruction
PО/1, PО/1 LAB, VR-PО/1, VR-PО/1 LAB additional shelf assembly instruction
PFP, half PFP perforated panel assembly instruction
CLASSIC corner workbench assembly instruction
PN Sloped (angled) shelf assembly instruction
IP Cantilever assembly instruction
PO/2 lower shelf assembly instruction
DL/А and DLV lighting assembly instruction
KL-1200 Retracing mechanism assembly instruction
TP Suspended drawer unit assembly instruction
TP-01/S movable drawer unit assembly instruction
TP-02/S movable drawer unit assembly instruction
ARK Bin rail assembly instruction
RK bin rail assembly instruction
DL_N Under-shelf LED unit assembly instruction
