Packing workbenches Viking
Select options
Expand description

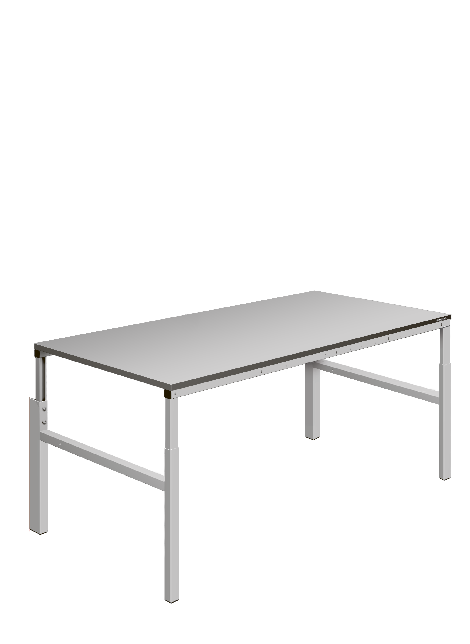

SR Workbench
Basic part of Packing workstation is the SR workbench. These workbenches can be placed in a line to make a common working area with no gaps. Universal design allows fitting out the workplace with necessary equipment and drawer units.
Height adjustment:
650-950 mm
Load capacity:
300 kg
Temperature resistance:
300°С
| Code | Dimensions |
|---|---|
| SR-15-9 | 1500х900 mm |
| SR-18-9 | 1800х900 mm |
Read more about additional modules
PO Main shelf
Rear racks included.
- 2 versions: 30 cm depth and 40 cm depth
- Height adjustment: 1000 — 1800 mm
- Load capacity: 50 kg
EP Power panel/ 1/2 EP power panel
Basic configuration consists of 4 sockets placed in aluminium case with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack.
- Nominal load capacity: 10 A
- Grounding cord
cross-section : 0.75 mm
DL/A Workbench lighting
4 DL/A Workbench lighting DL/A Workbench lighting is placed in an aluminum case with 2
- Length: 1200 mm
- Height adjustable 500 mm - 1350 mm
- Illuminance at 1000 mm distance: 1200 lux central
DL/S2 Workbench LED lighting
The case for lighting unit is made of aluminum, light direction regulation provided. Available in 2 versions: standard LED lighting, lighting with dimmer.- Light source: LED lamps
- Light flux: 5985 Lm
- Power consumption: 43 W
- Height adjustable: 500 mm - 1350 mm
DL/N2 Under-shelf local lighting
Additional local LED lighting can be mounted to any workbench series Main Shelf and Perforated panel. Provides uniform illumination level. Available in 2 versions : 60 and 90 cm.
RK Bin rail/ 1/2 RK half-size bin rail
Aluminum rail for bin storage placed along workbench length.
- Load capacity: 10 kg
PFP Perforated panel/ 1/2 PFP half-size perforated panel
Panel can be equipped by different holders for additional equipment and tools storage.
D-PO shelves dividers
Available in 2 versions: 300 and 400 mm deep.RD upper rolls holder/ 1/2 RD half-size rolls holder
A holder that helps to locate rolls of paper, film or bubble wrap above the tabletop
RD/2 lower rolls holder
A holder that helps to locate rolls of paper, film or bubble wrap below the tabletop
TPP suspended cabinet for printer with sliding shelf
Storage solution for printer or other equipment. With lower sliding shelf

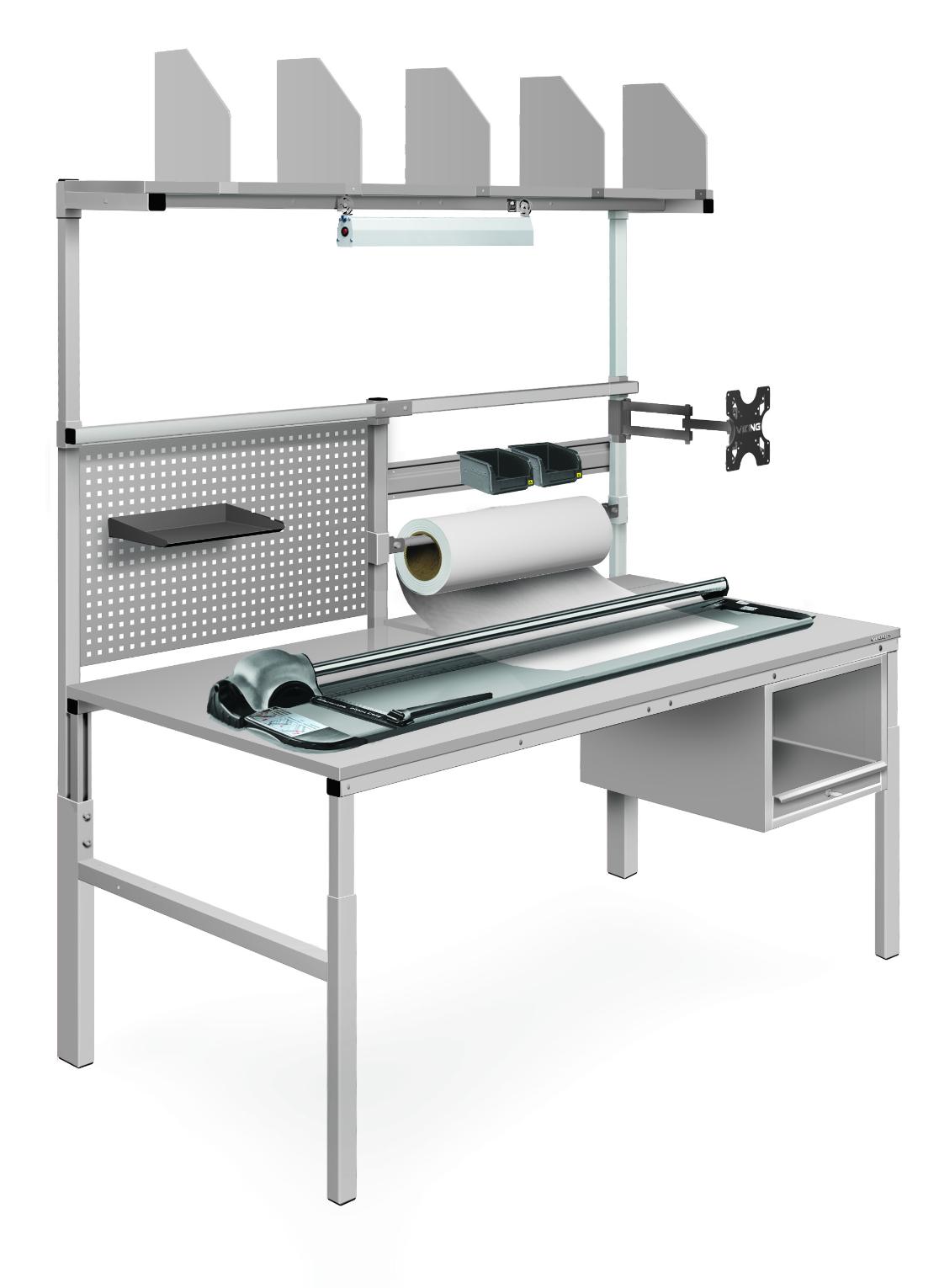

1/2 PRM protective underlayer for cutting
Protective underlayer that helps to easily cut packaging materials not damaging the tabletop.
Middle upright for all kind of workbenches
Middle upright is required for all 1/2 items, it consists of upright and transversal slat which differs according to workbench’s width.
The information and/or documents contained in this website do not constitute an offer.
To learn more please fill out the form and click send.
Assembly instructions
Classic workbench assembly instruction
EPA power panel assembly instruction
PО/1, PО/1 LAB, VR-PО/1, VR-PО/1 LAB additional shelf assembly instruction
PFP, half PFP perforated panel assembly instruction
CLASSIC corner workbench assembly instruction
PN Sloped (angled) shelf assembly instruction
IP Cantilever assembly instruction
PO/2 lower shelf assembly instruction
DL/А and DLV lighting assembly instruction
KL-1200 Retracing mechanism assembly instruction
TP Suspended drawer unit assembly instruction
TP-01/S movable drawer unit assembly instruction
TP-02/S movable drawer unit assembly instruction
ARK Bin rail assembly instruction
Certificates
IEC 61340 conformity certificate
DL/S2, DL/N2 lighting conformity certificate (Low Voltage Directive, EMC Directive)
DL/A lighting conformity certificate (Low Voltage Directive, EMC Directive)
Additional shelf
Drafts holder
Main shelf
Middle upright
Monitor holder
Power panel
Rear racks
Workbench lighting
CLASSIC workbenches
Workplaces are simple, functional and inexpensive. They can be placed in a line with no gaps for conveyor work.

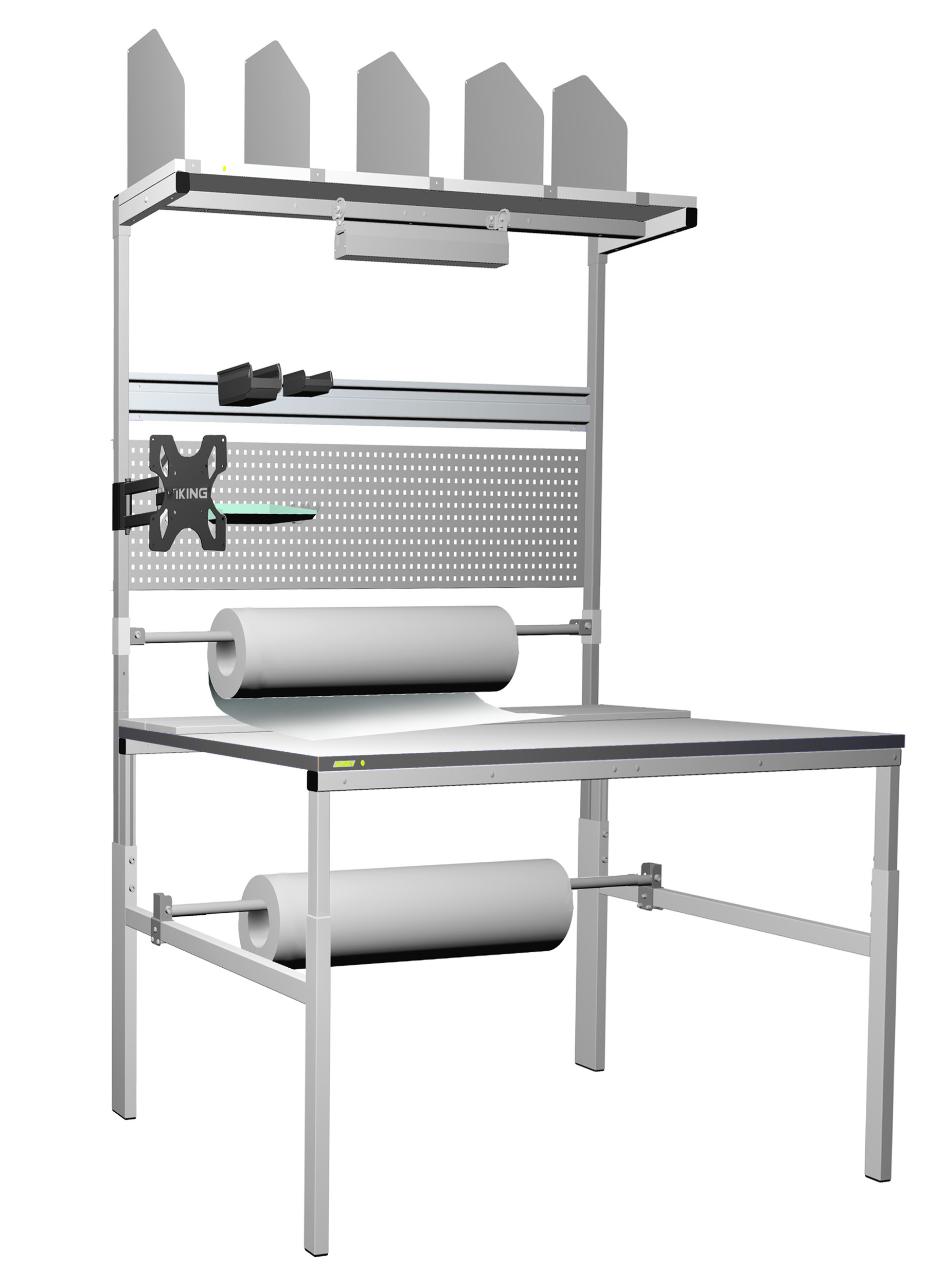

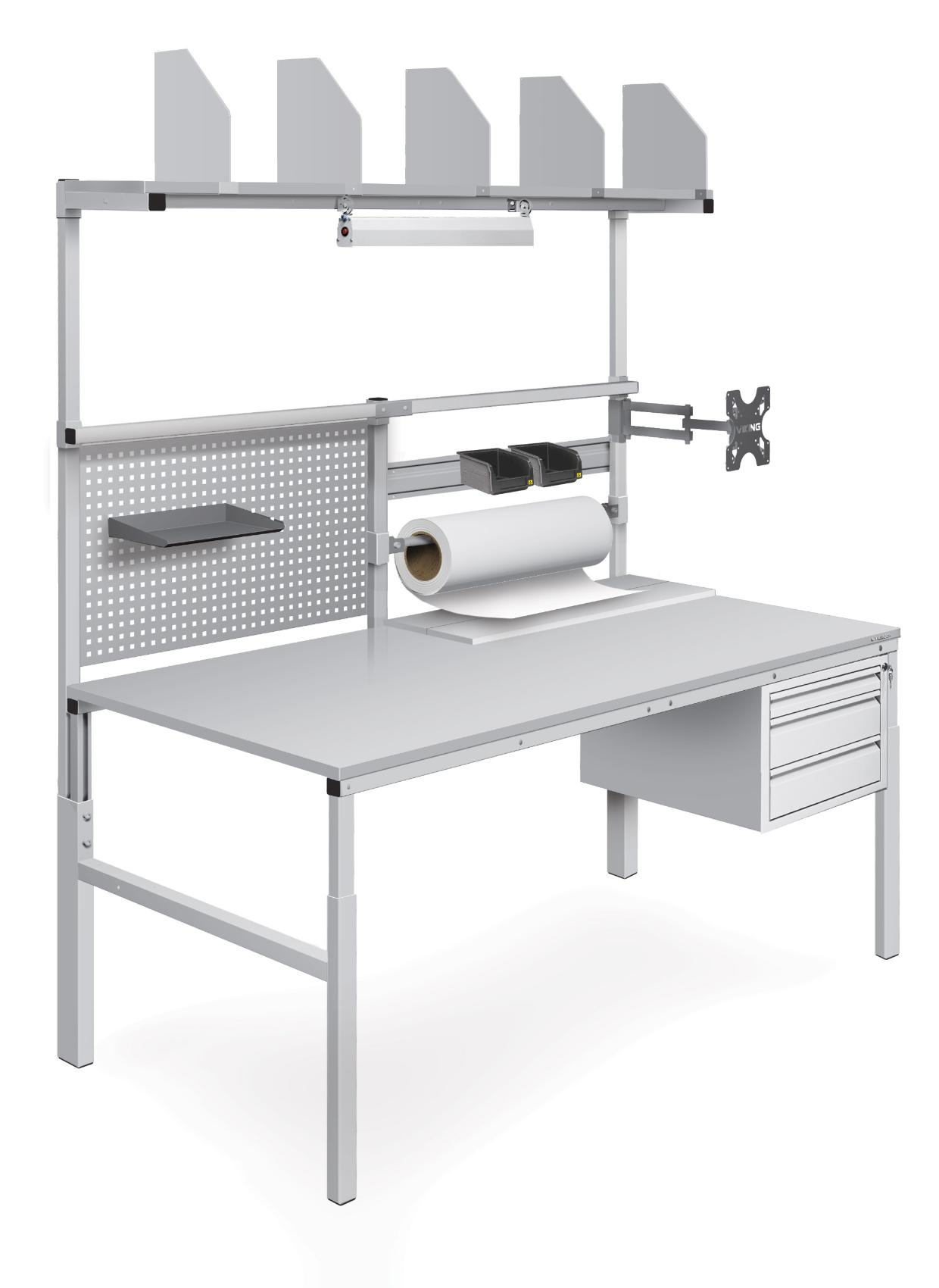

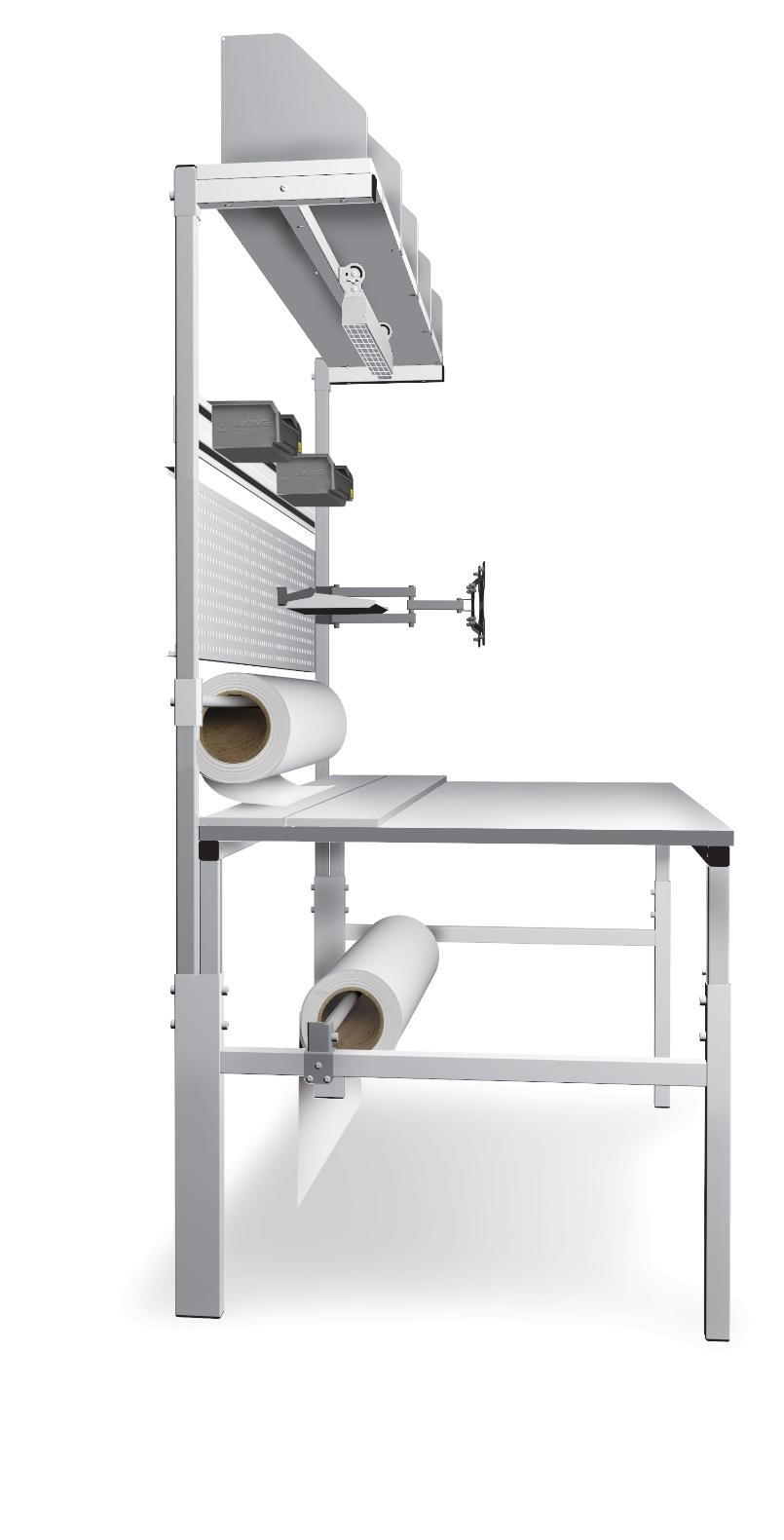

Packing workbenches Viking
Adjustable ergonomic workstation that helps to easily access all packaging materials - cartons, tape, paper, bubble wrap or others.
