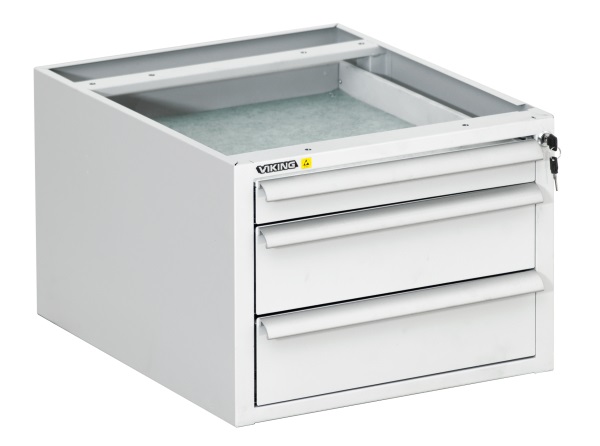

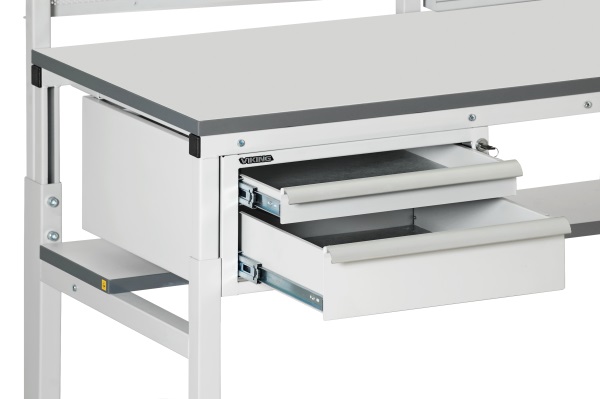

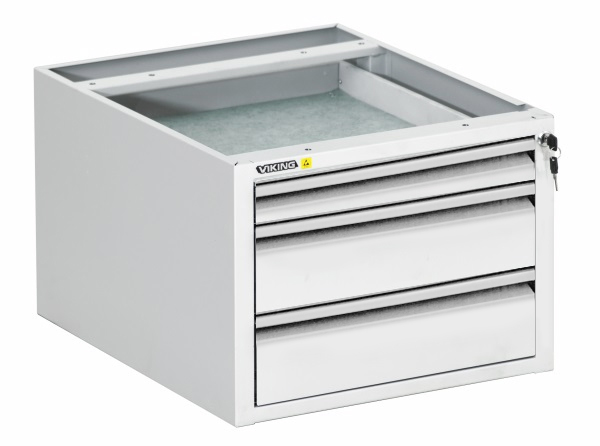

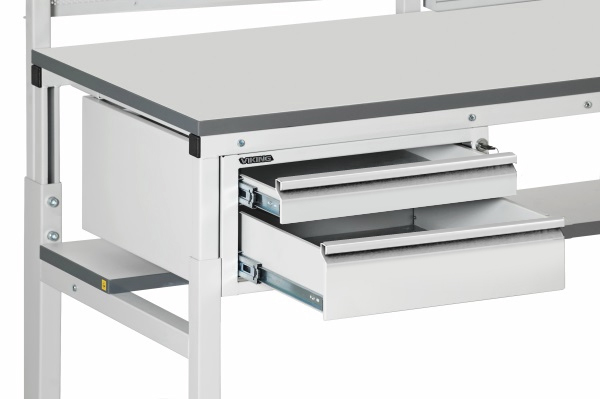

Suspended drawer units

Suspended drawer units have central lock and 360 mm telescoping drawers.

  • Load capacity per drawer 30 kg
Drawers’ inner dimensions for different types are:
А — standard 400×45×505 mm
B — standard 400×100×505 mm
a — reduced 400×45×426 mm
b — reduced 400×100×426 mm


  TP-01/P   TP-02/P TP-10/P TP-20/P
Type
standard
standard
reduced depth reduced depth
Dimensions  490×354×605 mm.  490×233×605 mm 490×354×490 mm 490×233×490 mm
Quantity of drawers   3   2 3
2
Types of drawers 1-A type, 2-B type   1-A type, 1-B type
1-a type, 2-b type
1-a type, 1-b type
 Weight   20 kg
  15 kg 17 kg
12 kg

When ordering, please, mention whether ESD or technical version and dark grey RAL 7012 or light grey RAL 7035 color required.
