COMFORT workbenches
Select options
2 versions: 900 mm length (for workbench width 1200 mm) and 1200 mm length (for 1500 mm and 1800 mm width workbenches)
Light source: LED lamps (45/60 pcs.)
Light flux: 4725/6300 Lm
Power consumption: 33/45 W.
Material of diffuser: opal acryl
Height adjustable: 500 mm - 1500 mm

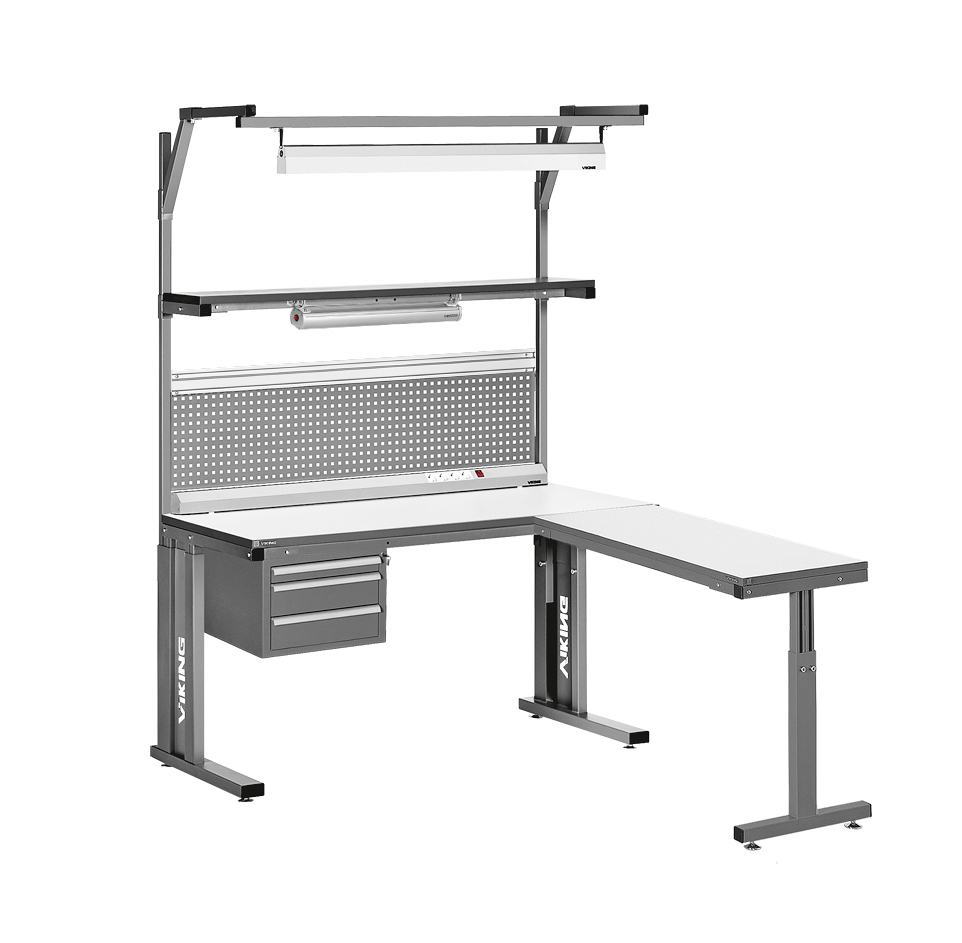

US-1 Comfort Corner worktop

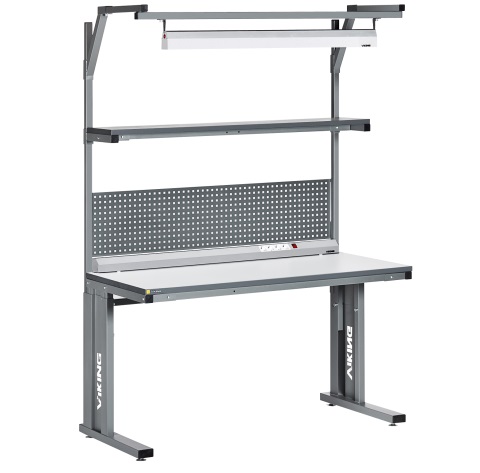

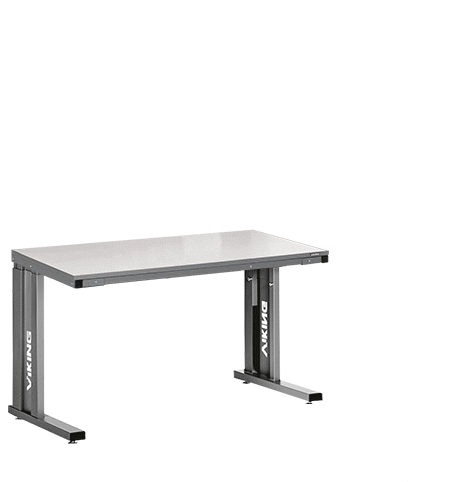

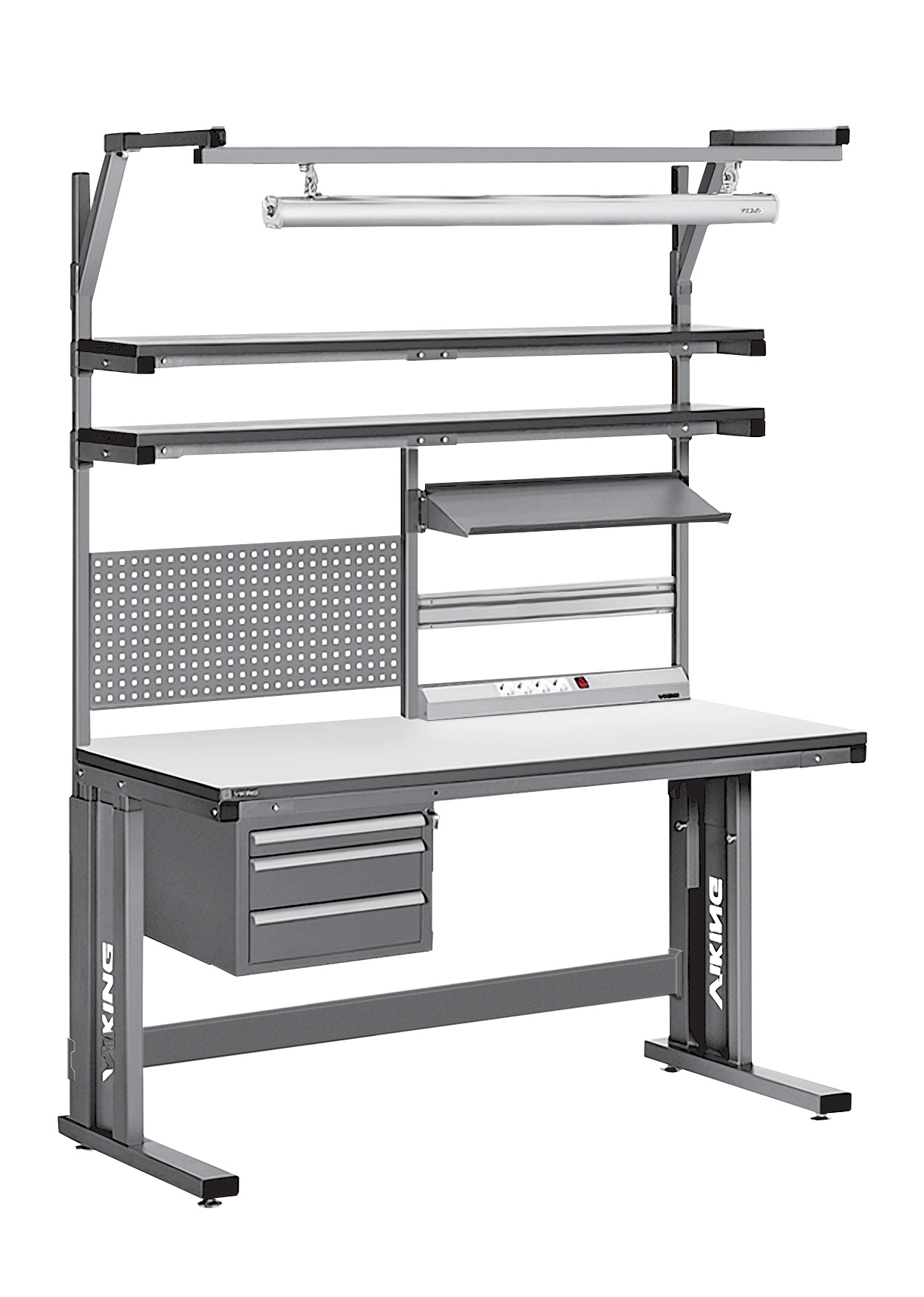

SR Comfort Workbench
These workbenches offer advanced ergonomic characteristics.
Height adjustment:
800-950 mm
Load capacity:
200 kg
Temperature resistance:
300°С
| Code | Dimensions |
|---|---|
| SR-12-7 Comfort | 1200х700 mm |
| SR-15-7 Comfort | 1500х700 mm |
| SR-18-7 Comfort | 1800х700 mm |
Read more about additional modules
PO Main shelf
- Rear racks included.
- Height adjustment: 1000 — 1850 mm
- Load capacity: 50 kg
PO/1 Additional shelf
- Requires PO Main shelf to be installed.
- 2 versions: 30 cm depth and 40 cm depth
- Height adjustment: 1100 - 1800 mm
- Load capacity: 50 kg
EP Power panel (½ EP Power panel)
Basic configuration consists of 4 sockets placed in aluminium case with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack.
- Nominal load capacity: 10 A
- Grounding cord
cross-section : 0.75 mm
DL/A Comfort Workbench lighting
DL/A Comfort Workbench lighting is placed in an aluminum case with 2
- Length: 1200 mm
- Height adjustable
- Illuminance at 1000 mm distance: 1200 lux central and 800 lux peripheral

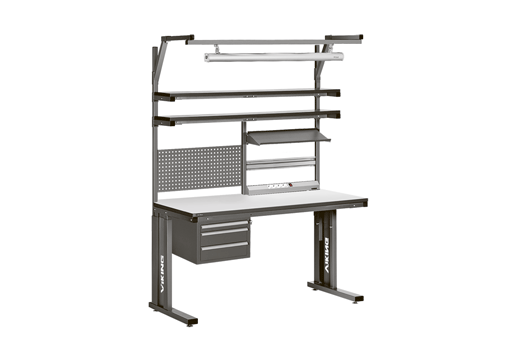

DL/S Comfort Workbench LED lighting
The case for lighting unit is made of aluminum, light direction regulation provided2 versions: 900 mm length (for workbench width 1200 mm) and 1200 mm length (for 1500 mm and 1800 mm width workbenches)
Light source: LED lamps (45/60 pcs.)
Light flux: 4725/6300 Lm
Power consumption: 33/45 W.
Material of diffuser: opal acryl
Height adjustable: 500 mm - 1500 mm
Under-shelf local lighting
Additional local LED lighting can be mounted to any workbench series Main Shelf and Perforated panel. Provides uniform illumination level. 80˚angle adjustment.Middle upright for all kind of workbenches
Middle upright is required for all 1/2 items, it consists of upright and transversal slat which differs according to workbench’s width.
RK Bin rail (½ RK Bin rail)
Aluminum rail for bin storage placed along workbench length.
- Load capacity: 10 kg
PFP Perforated panel (½ PFP Perforated panel)
Panel can be equipped by different holders for additional equipment and tools storage.
PN Sloped shelf
Angle adjustment provides comfort monitoring of working equipment.
- Load capacity: 50 kg
IP Cantilever
It was designed for
UPK Additional lower slat
- Dimensions: 1200×500 mm
Optional drawer units
Storage solution for tools and components, no place on floor required.
Suspended drawer units TP-10/P and TP-20/P with reduced to 490 mm depth. It allows installing various additional equipment under a tabletop.
Drawer unit can be placed either on left or right side.
Dimensions:
- TP-01/P: 490 x 354 x 580 mm
- TP-02/P: 490 x 233 x 580 mm
- TP-10/P: 490 x 354 x 490 mm
- TP-20/P: 490 x 233 x 490 mm
