ALLIANCE workbenches
Select options
We also offer motorized worktop adjustment embodied in Alliance Automatic series workbenches AL-A.

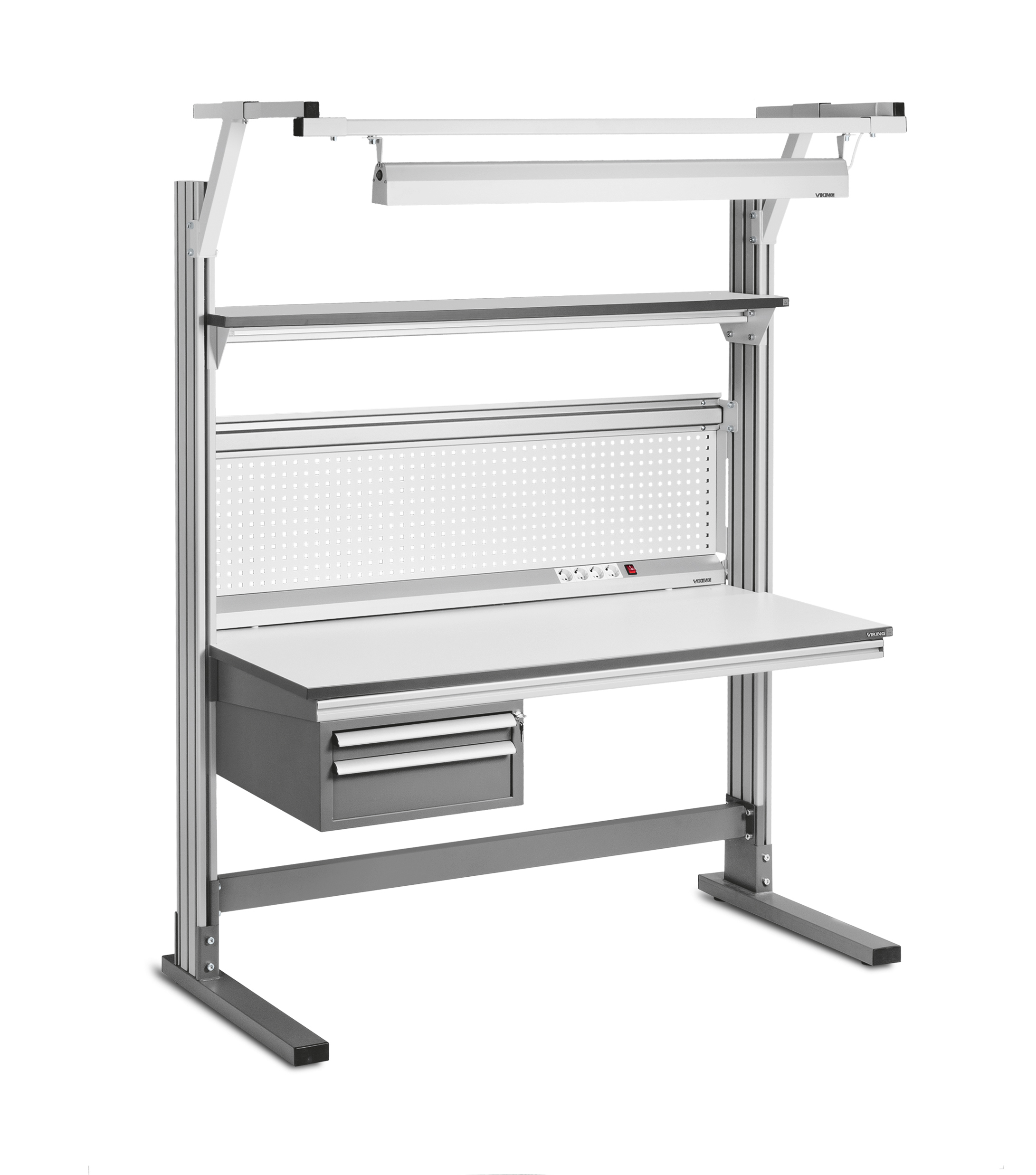

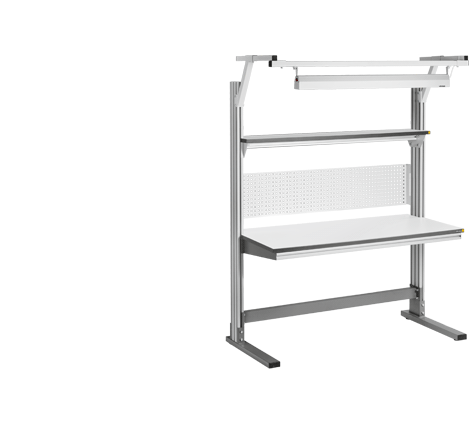

AL Alliance set/ AL-S2 Alliance with LED lighting
Single workbench with two lateral aluminium frames. The workbench is supplied in a set with lower cleat, perforated panel, main shelf and lighting (LED lighting).
- Load capacity: 200 kg

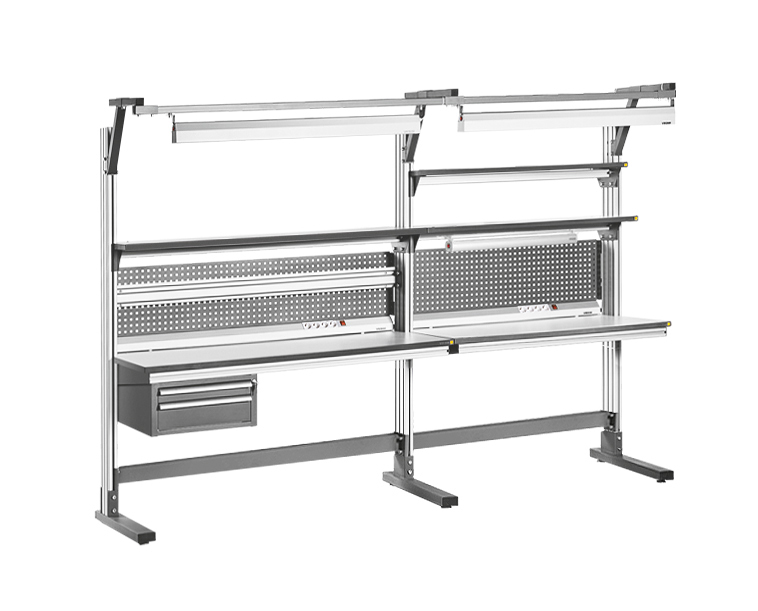

AL/D Alliance additional set/ AL/D-S2 Alliance additional set with LED lighting
Additional set with one lateral aluminium frame is meant to be attached to main Alliance workbench from either side, which provides inseparable working surface line. The set includes: workbench with one lateral frame, lower cleat, perforated panel, main shelf and lighting (LED lighting).
- Load capacity: 200 kg

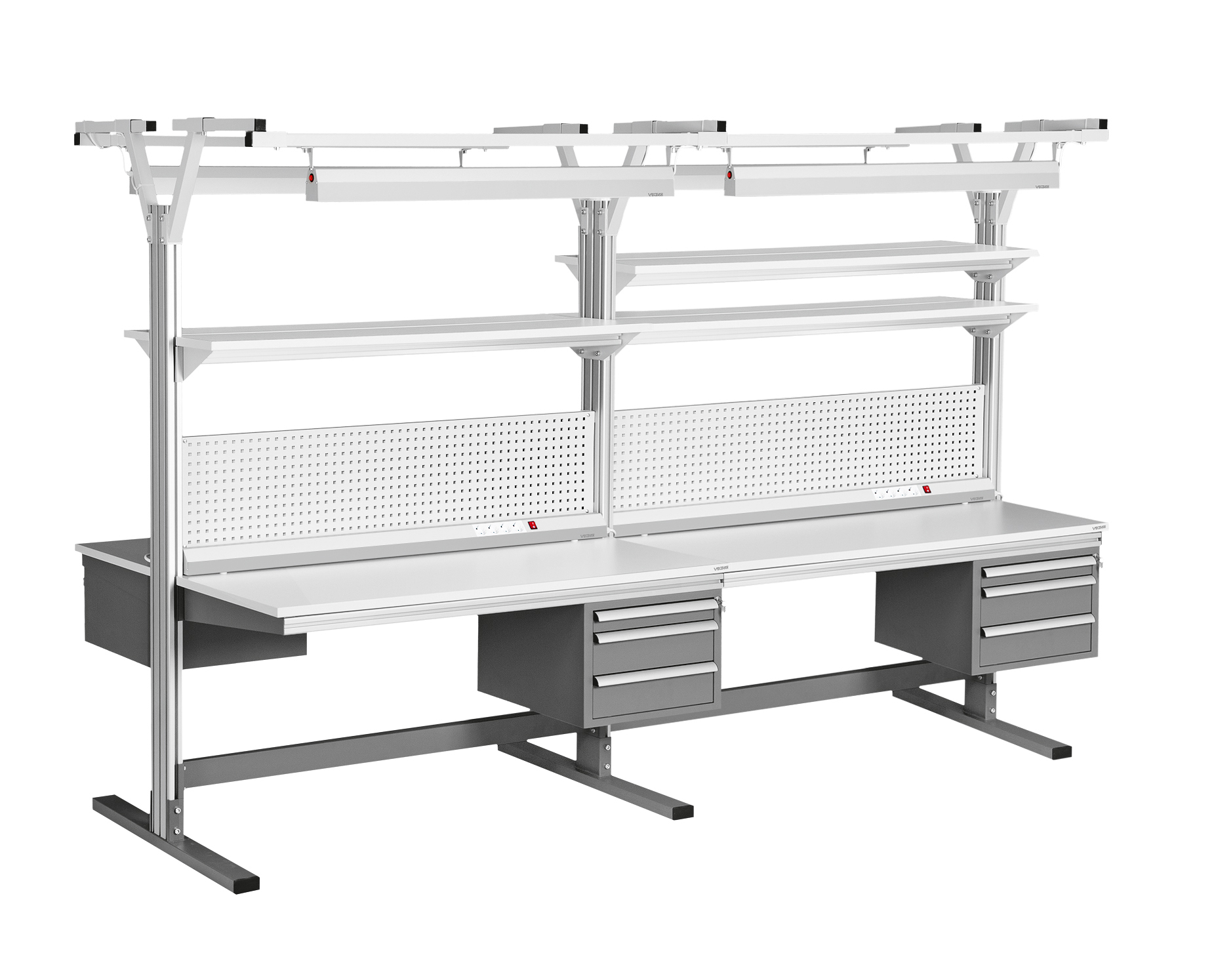

AL-O Alliance double set/AL-O-S2 Alliance double set with LED lighting
Mirror-like double workbench with two lateral aluminium frames. The workbench is supplied in a set with double lower cleat, double-sided perforated panel, double main shelf and two lighting units (LED lighting units).- Each tabletop load capacity: 200 kg
AL-O/D Alliance additional set / AL-O/D-S2 Alliance additional set with LED lighting
Mirror-like double workbench with one lateral aluminium frame to be attached to main Alliance double workbench. The workbench is supplied in a set with double lower cleat, double-sided perforated panel, double main shelf and two lighting units (LED lighting units).- Each tabletop load capacity: 200 kg

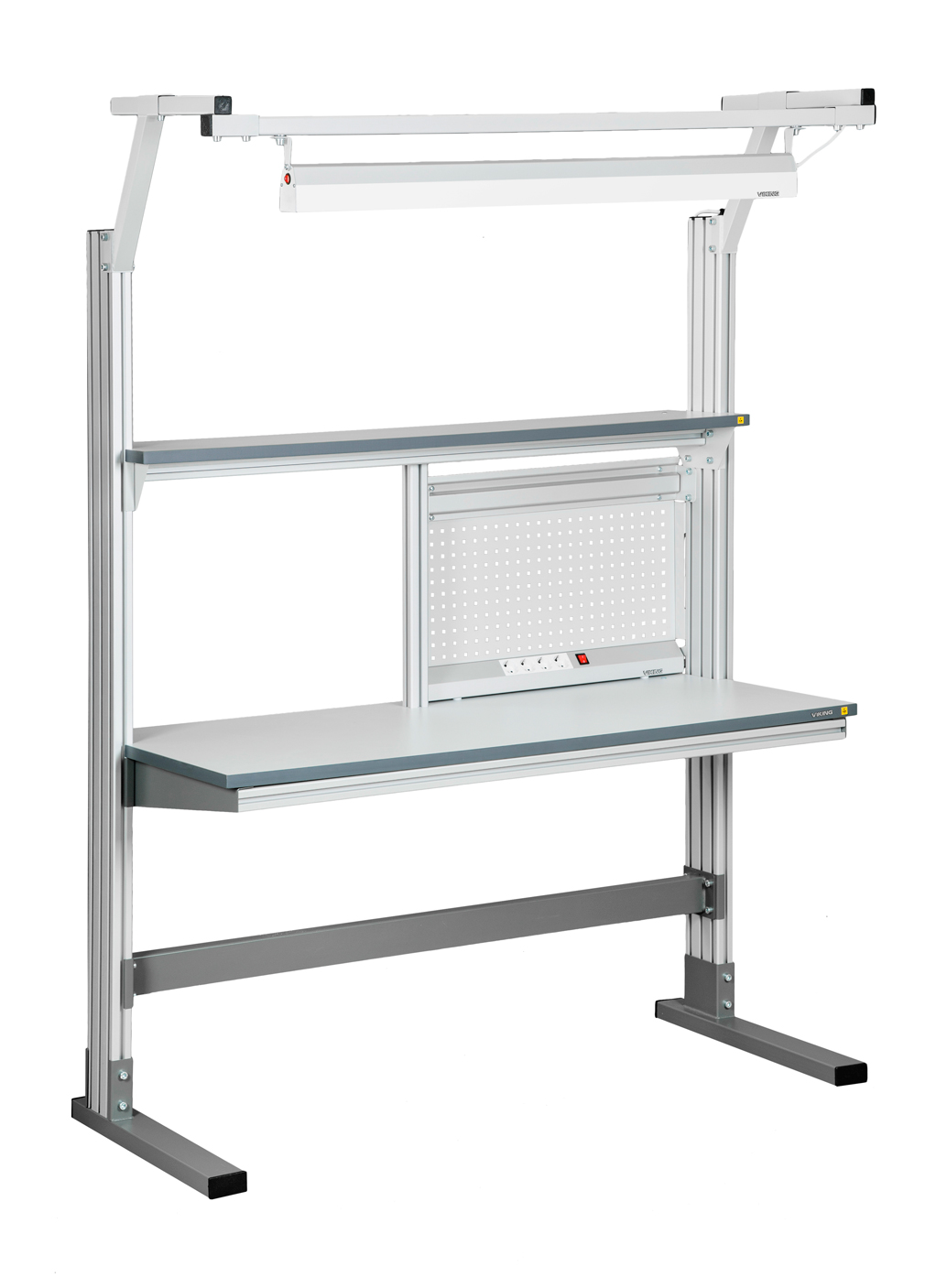

AL-SRST Alliance set / AL-SRST-S2 Alliance set with LED lighting
Single workbench with two lateral aluminium frames. The workbench is supplied in a set with middle upright, half-size perforated panel, lower cleat, main shelf and lighting (LED lighting).
- Load capacity: 200 kg
Read more about additional modules
AL-PO/1 Additional shelf
Additional shelf for Alliance series workbenches.- Load capacity: 100 kg
- Height adjustment: 1000 - 1850 mm.
AL-O-PO/1 Additional shelf
Additional double shelf for double Alliance series workbenches.- Load capacity: 100 kg each side
- Height adjustment : 1000 - 1850 mm.
Under-shelf local lighting DL/N
Additional local LED lighting can be mounted to any workbench series Main shelf and Perforated panel
- 2 versions: 60 cm length and 90 cm length
- Angle adjustment 80˚
AL-RK Bin rail
Aluminum rail for bin storage placed along workbench length.
- Load capacity: 10 kg
AL-O-RK Double bin rail
Double aluminum rail for bin storage placed along workbench length.
- Load capacity for each side: 10 kg
1/2 AL-RK Bin rail
Half-size aluminum rail for bin storage placed along workbench length. Mounted only to AL-SRST and AL-SRST-S Alliance sets.
- Load capacity: 10 kg
AL-EP Power panel
Basic configuration consists of 4 sockets placed in aluminium case with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack.
- Nominal load capacity: 10 A
- Grounding cord cross-section: 0.75 mm
AL-O-EP Double power panel
Basic configuration consists of 2 aluminium cases with 4 sockets with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack.
- Nominal load capacity each: 10 A
- Grounding cord cross-section: 0.75 mm
1/2 AL-EP Power panel
Basic configuration consists of 4 sockets placed in half-size aluminium case with protective contact and 3 m cable. Panel can be equipped with additional sockets, earth leakage circuit breaker, automatic fuse and a phone jack. Mounted only to AL-SRST and AL-SRST-S Alliance sets.
- Nominal load capacity: 10 A
- Grounding cord cross-section: 0.75 mm
AL-IP Cantilever
It was designed for easy-to-reach attaching of drawings, lighting and instruments. IP Cantilever can be additionally equipped by retracing KL-1200 mechanism.Optional drawer units
Storage solution for tools and components, no place on floor required.
- TP-01/P: 490 x 354 x 605 mm
- TP-02/P: 490 x 233 x 605 mm
- TP-10/P: 490 x 354 x 490 mm
- TP-20/P: 490 x 233 x 490 mm
Информация на сайте, не является публичной офертой.
Конечная цена может меняться в зависимости от условий поставки, наличия сырья и комплектующих на момент заказа.
Для получения подробной информации о наличии и стоимости указанных товаров и (или) услуг, пожалуйста, обращайтесь к нашим менеджерам через форму обратной связи.
Assembly instructions
AL-O-EPA ALLIANCE double power panel assembly instruction
AL-EPA ALLIANCE and ALPHA power panel assembly instruction
ALLIANCE workbench assembly instruction
ALLIANCE and ALPHA RK Bin rail assembly instruction
PО/1, PО/1 LAB, VR-PО/1, VR-PО/1 LAB additional shelf assembly instruction
AL-PO/1 Additional double sided shelf assembly instruction
PFP, half PFP perforated panel assembly instruction
Alpha Alliance double shelf assembly instruction
Alliance additional workbench assembly instruction
Alliance double sided additional workbench assembly instruction
AL-RK, half AL-RK, Bin rail assembly instruction
SRST Middle upright bar Alliance assembly instruction
IP Cantilever assembly instruction
AL-PO ALPHA ALLIANCE additional shelf assembly instruction
ALF-EPA Power panel assembly instruction
PFP-O double perforated panel assembly instruction
KL-1200 Retracing mechanism assembly instruction
TP Suspended drawer unit assembly instruction
TP-01/S movable drawer unit assembly instruction
TP-02/S movable drawer unit assembly instruction
ARK Bin rail assembly instruction
RK-O Double bin rail assembly instruction
RK bin rail assembly instruction
AL-RK Bin rail assembly instruction
AL-O-RK ALLIANCE double bin rail assembly instruction
DL_N Under-shelf LED unit assembly instruction
