Anti-static workbenches | technical workbenches ALPHA
Select options
4 sockets with protective contact and 3 m cable in a small aluminium case. Side power panel can be mounted either on any part of lateral aluminium frame. No extension possible.
ALF-PO Main shelf
Main shelf for Alpha series single workbenches.Height adjustment: 1200 – 1500 mm.
ALF-O-PO Double main shelf

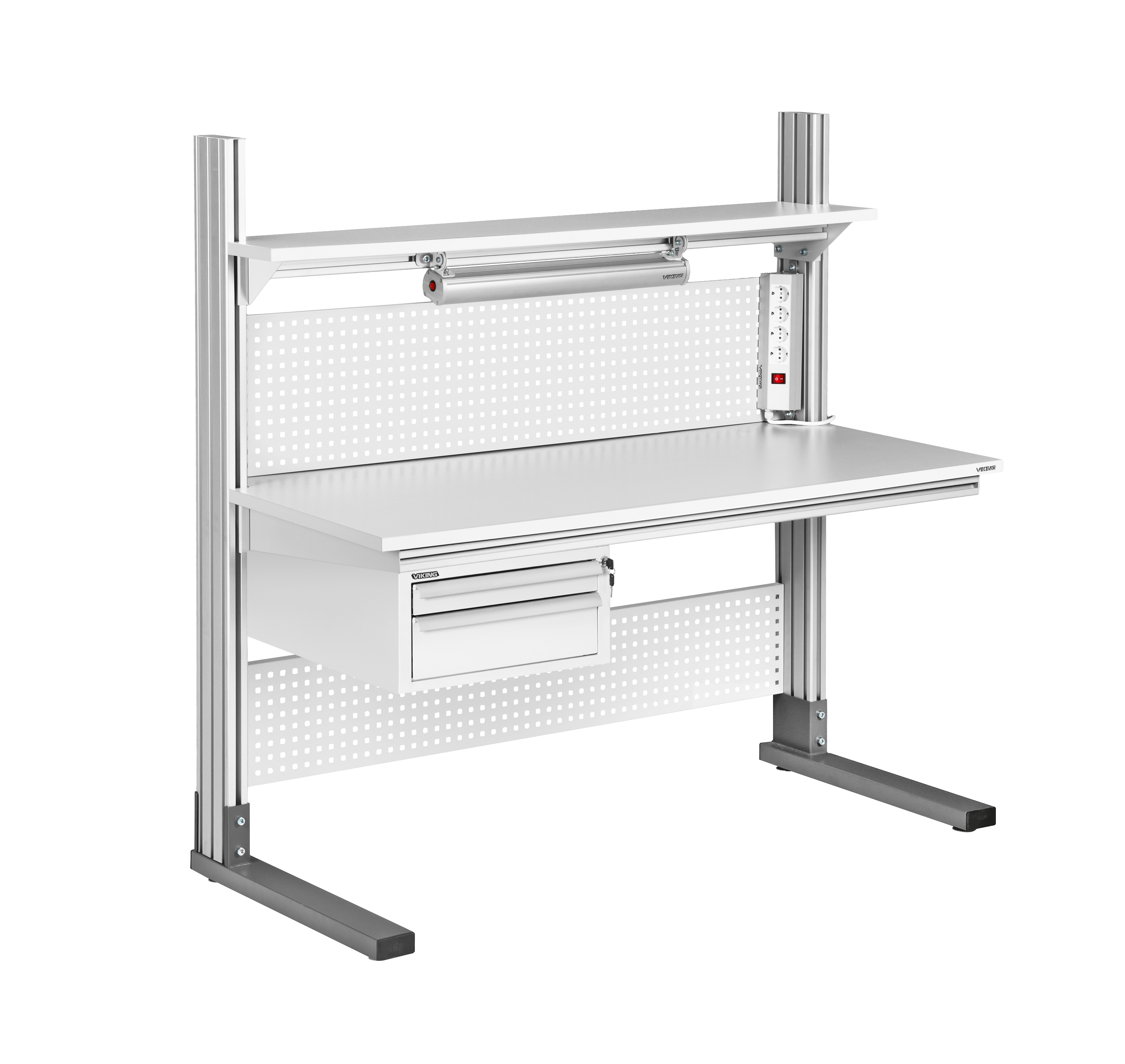

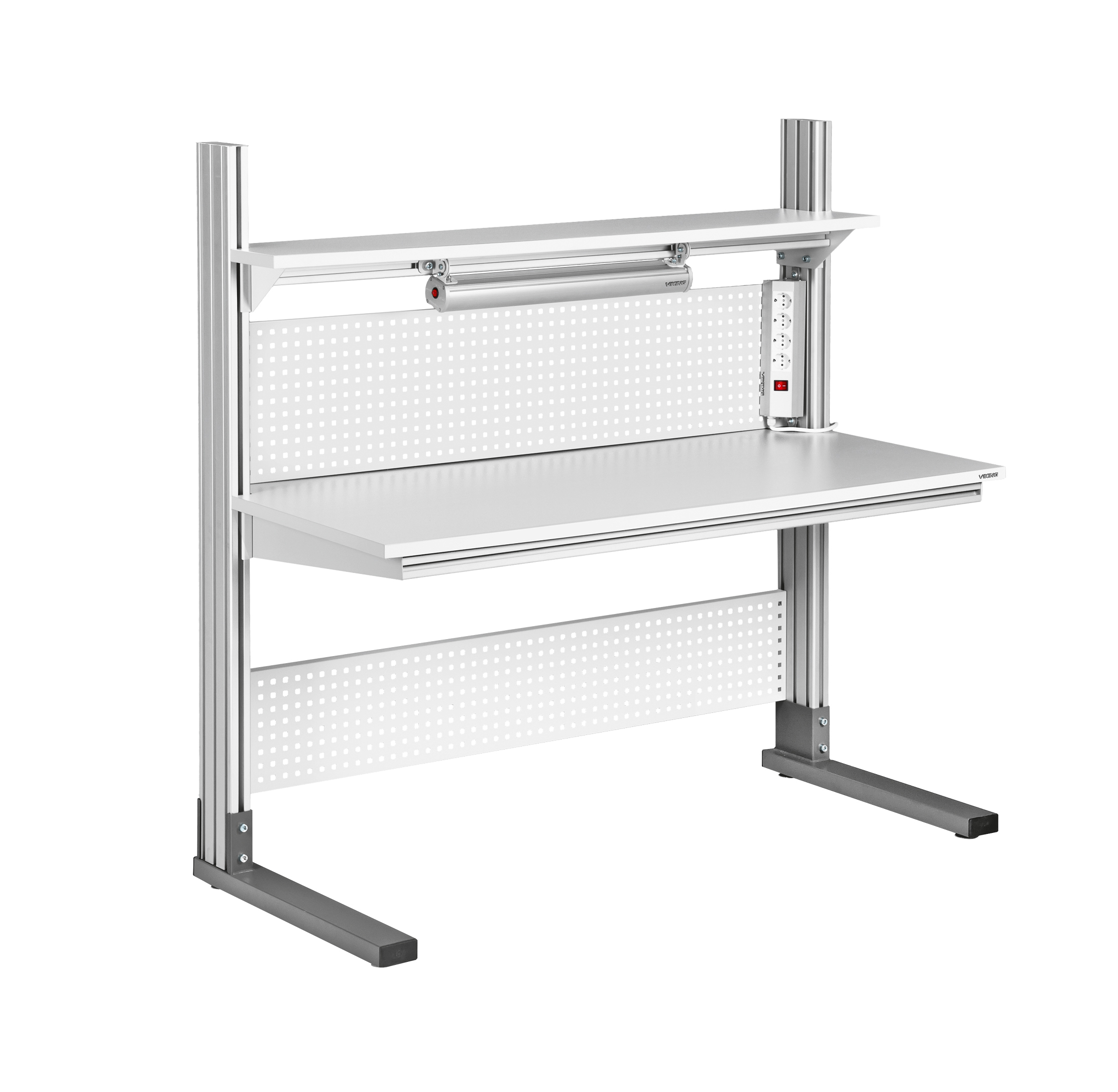

ALF Single workbench
This comfortable workbench is perfect for small premises which require space-saving equipment. It is recommended for office and engineering personnel, also used for training and educational premises. Workbench is supplied in a set with 2 perforated panels. Tabletop thickness 25 mm.
- Adjustable tabletop height
- Workplace height: 1500 mm
- Load capacity: 200 kg

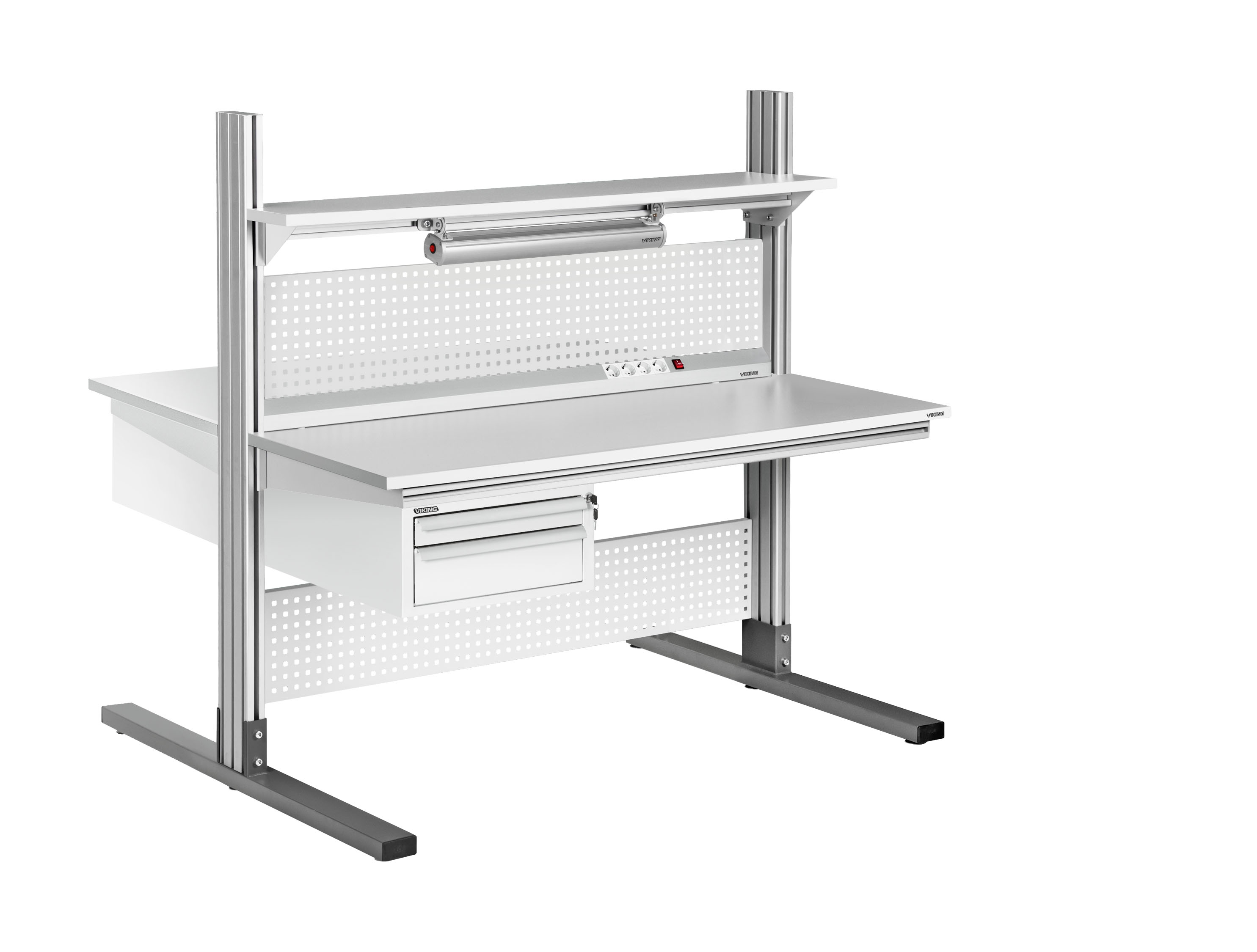

ALF-O Double workbench
Double workbench with 2 mirror located tabletops, helps to save space and reduce costs. Workbench is supplied in a set with 2 double perforated panels and 2 tabletops. Tabletop thickness 25 mm.
- Adjustable tabletop height
- Workplace height: 1500 mm
- Each tabletop load capacity: 200 kg
| Code | Size |
| ALF-12-7 | 1200х700 mm |
| ALF-15-7 | 1500х700 mm |
| ALF-18-7 | 1800х700 mm |
| ALF-O-12-7 | 2 *(1200х700) mm |
| ALF-O-15-7 | 2* (1500х700) mm |
| ALF-O-18-7 | 2* (1800х700) mm |
Read more about additional modules
ALF-EPA Power panel/ALF-O-EPA Double power panel
Basic configuration consists of 4 sockets in an aluminium case (2 aluminium cases for double) with protective contact and 3 m cable. Can be equipped with additional sockets, fuses, phone jacks and earth leakage circuit breakers.
4 sockets with protective contact and 3 m cable in a small aluminium case. Side power panel can be mounted either on any part of lateral aluminium frame. No extension possible.
ALF-PO Main shelf
Main shelf for Alpha series single workbenches.
- 30 cm depth
- Load capacity: 50 kg
Main shelf for Alpha series double workbenches
- 30 cm depth from each side
- Load capacity: 50 kg
- Height adjustment: 1200 – 1500 mm.
Under-shelf local lighting DL/N
Additional local LED lighting can be mounted to any workbench series Main shelf and Perforated panel
- 2 versions: 60 cm length and 90 cm length
- Angle adjustment 120˚
Optional drawer units
Storage solution for tools and components, no place on floor required.
- TP-01/P: 490 x 354 x 580 mm
- TP-02/P: 490 x 233 x 580 mm
- TP-10/P: 490 x 354 x 490 mm
- TP-20/P: 490 x 233 x 490 mm
Информация на сайте, не является публичной офертой.
Конечная цена может меняться в зависимости от условий поставки, наличия сырья и комплектующих на момент заказа.
Для получения подробной информации о наличии и стоимости указанных товаров и (или) услуг, пожалуйста, обращайтесь к нашим менеджерам через форму обратной связи.
Assembly instructions
ALPHA Double workbench assembly instruction
EPA power panel assembly instruction
RK, half RK bin rail assembly instruction
ALLIANCE and ALPHA RK Bin rail assembly instruction
PFP, half PFP perforated panel assembly instruction
Alpha Alliance double shelf assembly instruction
ALPHA Workbenches assembly insructions
AL-PO ALPHA ALLIANCE additional shelf assembly instruction
ALF-EPA Power panel assembly instruction
PFP-O double perforated panel assembly instruction
KL-1200 Retracing mechanism assembly instruction
TP Suspended drawer unit assembly instruction
TP-01/S movable drawer unit assembly instruction
TP-02/S movable drawer unit assembly instruction
ARK Bin rail assembly instruction
RK-O Double bin rail assembly instruction
RK bin rail assembly instruction
DL_N Under-shelf LED unit assembly instruction
Solutions
Office premise / Unspecified technical and office premisesCertificates
IEC 61340 conformity certificate
DL/S2, DL/N2 lighting conformity certificate (Low Voltage Directive, EMC Directive)
DL/A lighting conformity certificate (Low Voltage Directive, EMC Directive)
Double shelf
Drafts holder
Main shelf
Monitor holder
Optional drawer units
Power panel
Under-shelf lighting
Anti-static workbenches | technical workbenches ALPHA
ALPHA series workbenches are designed as an extension of Alliance series product line. Alpha series workbenches allow effective use of space, offer practical structures and a compact size.
VKG A-9400 Connecting plug for grounding cables
White connecting plug for grounding cables with 1 MOhm resistor
Computer case support
Under-shelf LED lighting
Local LED lighting
