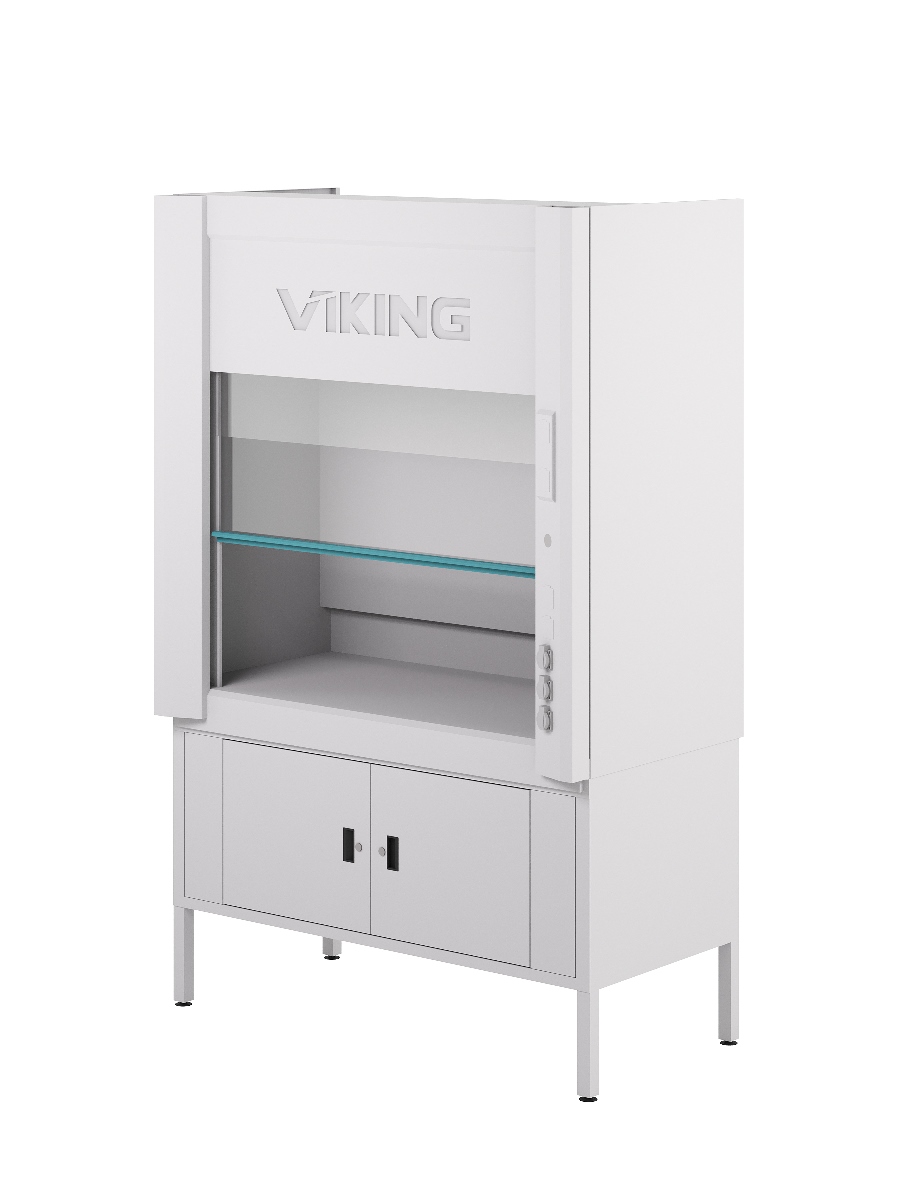

Fume cupboard LLC with metal storage unit
Fume cupboard LLC
Fume cupboard with solid walls | Fume hood LLC
Select options
Standard version features
Available options
Expand description
Fume hoods are designed to capture, contain, and exhaust hazardous fumes, vapors or dusts generated inside their enclosure.
They are designed to keep laboratory professionals safe while working with hazardous materials.
Fume hoods LLC consist from 2 parts:

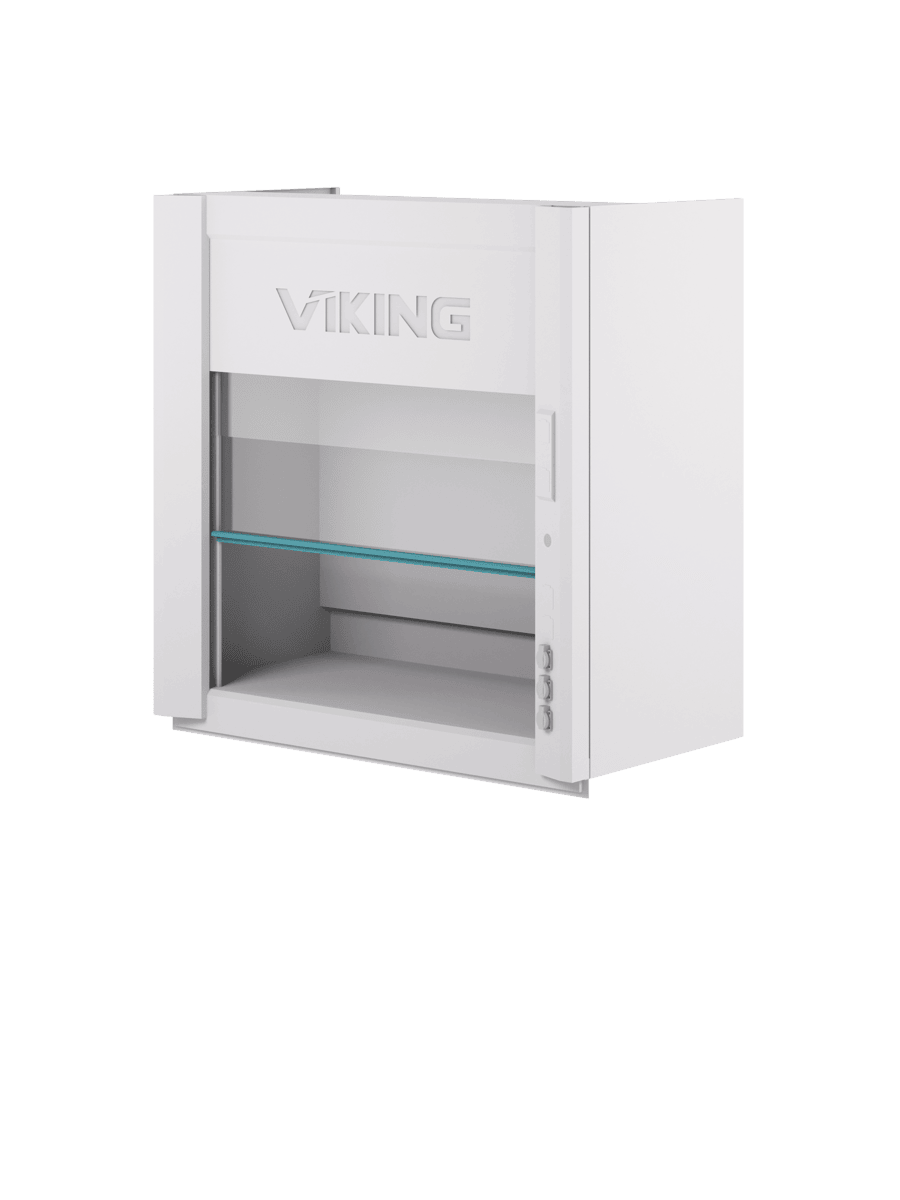

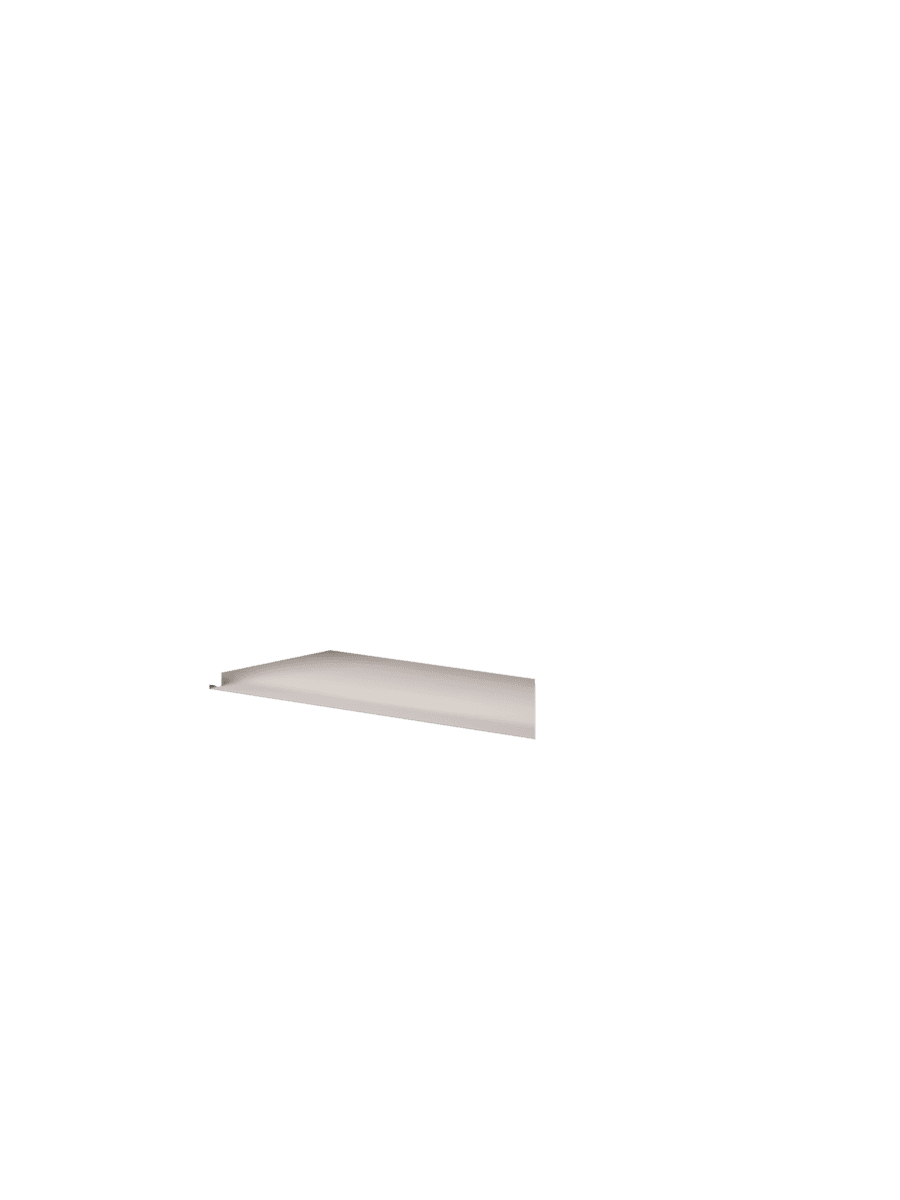

- Chemical resistant metal body (RAL9010) with 3 air flow directions which is delivered completely assembled. There are different countertop materials you can choose from.

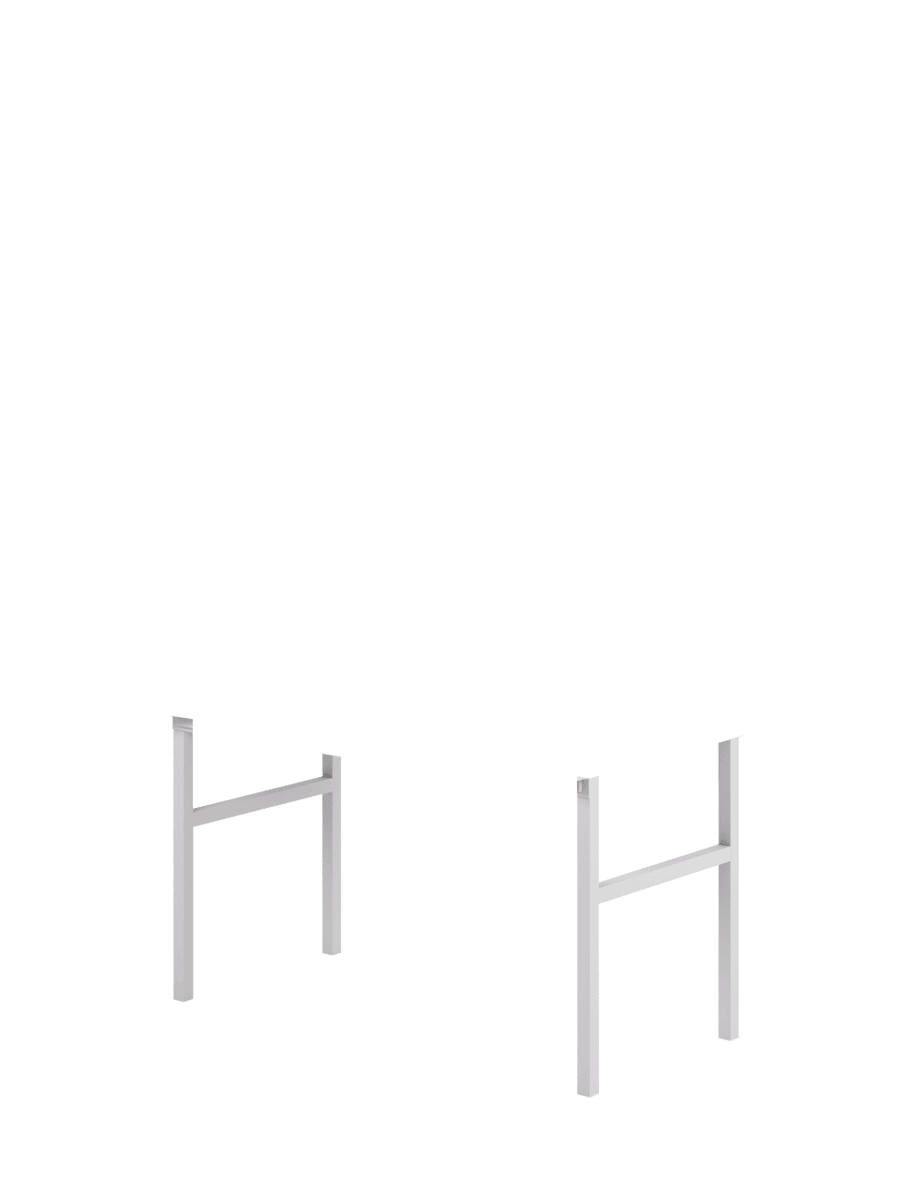

- Heavy-duty metal base stand with height adjustment 650-900 mm and max. load 300 kg
The fume hood has a 200 mm diameter exhaust collar in the upper part of the body for connection to ventilation system.
| Article | DIMENSIONS (W×D×H), mm | COUNTERTOP MATERIAL |
|---|---|---|
| LLC-10-7 LAB RAL 9010 | 1000 × 700 × 2340 | laminated particleboard, HPL, HPL PLUS, stainless steel, PP, porcelain stoneware, porcelain stoneware PRO |
| LLC-12-7 LAB RAL 9010 | 1200 × 700 × 2340 | |
| LLC-15-7 LAB RAL 9010 | 1500 × 700 × 2340 | |
| LLC-18-7 LAB RAL 9010 | 1800 × 700 × 2340 |
Standard version features

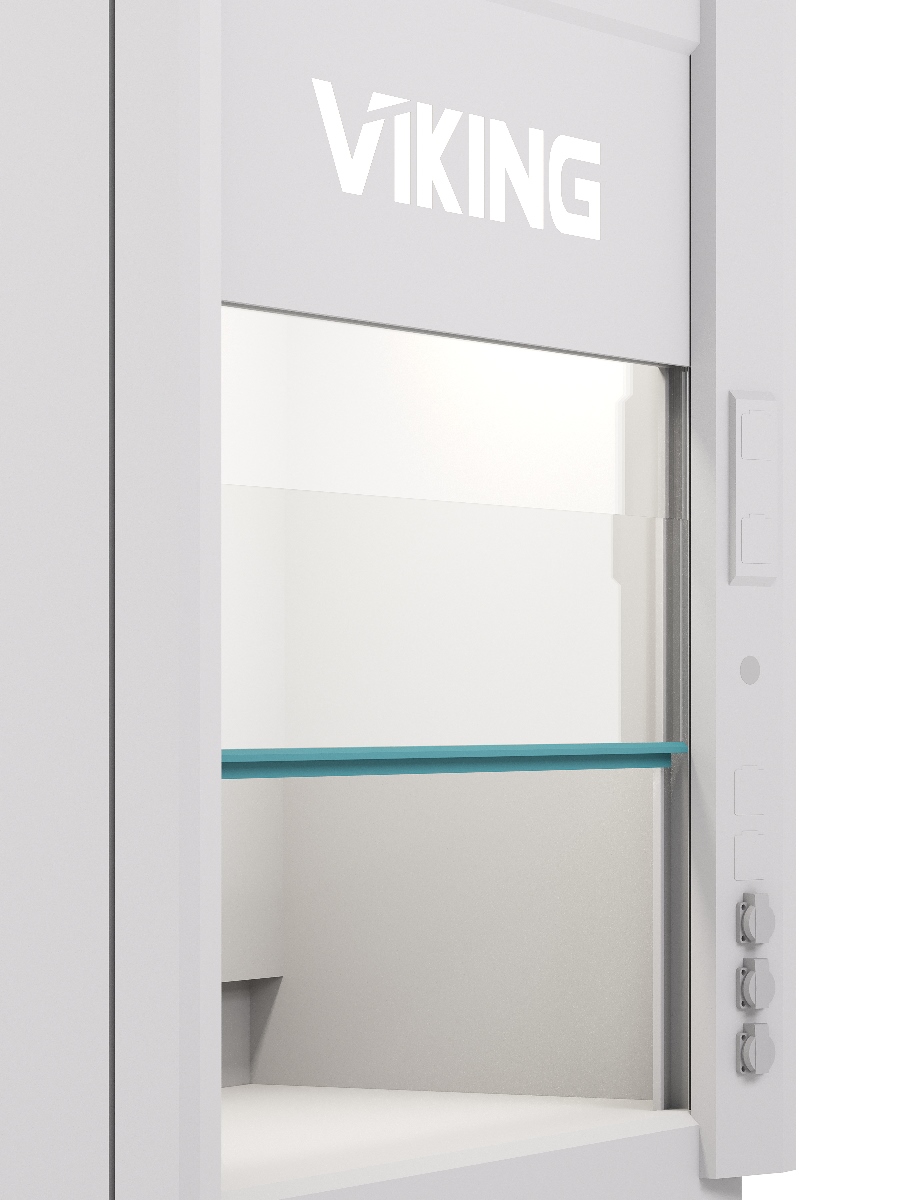

- Sash window of tempered 4mm glass;
- 3 grounded IP54 sockets;
- steel flange Ø 200 mm.
Available options
- Metal storage units TB-10/12/15/18-7 LAB RAL 9010;
- Spill containment lip FS-LLC LAB
- Autonomous cooling fan;
- LED unit for fume hood IP40 860 mm
- LED unit for fume hood IP66 1210 mm
- Additional IP54 socket 220V
- Automatic transfer switch: 10 or 16A
- Ground-Fault Circuit Interrupter 16 or 25A
- Leveling feet
